100GBASE-LR4 10km Industrial Temperature QSFP28 Optical Transceiver

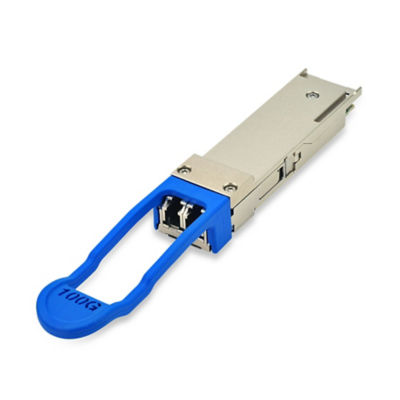

Product image of 100GBASE-LR4 10km Industrial Temperature QSFP28 Optical Transceiver

FTLC1154RDPL4 QSFP28 transceiver modules are designed for outside plant applications with an industrial temperature range (-40 °C to +85 °C), they are compliant with the QSFP28 MSA IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Notes AN-2152and AN-2153. The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU. See Finisar Application Note AN_x005F_xFFFE_20387 for more details. For details of our compliance standards, click here.

Parameter FTLC1154RDPL4
Operating Distance 10 km
Data Rate 103.1 Gb/s
Data Transfer Rate 100G
Protocol Ethernet
Connector LC
Media Type Duplex SMF
Form Factor QSFP-DD
Low End Case Temperature (ºC) -40 °C
Voltage Supply (V) 3.3 V
Diagnostics Digital
High End Case Temperature (ºC) 85 °C
Wavelength (nm) 1310nm Band
Transmitter 4x LWDM DFB Laser
Receiver PIN
