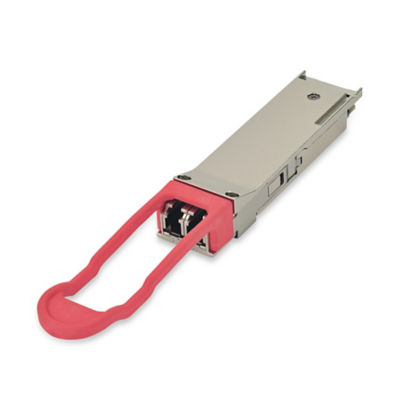

40GE Multi-rate QSFP+ Optical Transceiver Module – 40 km
FTL4E1QM1C QSFP+ transceiver modules are compliant with the QSFP+ MSA, IEEE 802.3bm 40GBASE-ER42and OTU3 requirements specified in ITU-T Recommendation G.6953as adapted to a 40 km interface. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. For details of our compliance standards, click here.
Contact Sales about this Product
https://www.coherent.com/content/dam/coherent/site/en/resources/datasheet/networking/optical-transceivers/qsfp/ftl4e1qm1c-transceiver-ds.pdf">Download the Datasheet
Datasheet
| Parameter | FTL4E1QM1C |
|---|---|
| Operating Distance | 40 km |
| Data Transfer Rate | 40G |
| Form Factor | QSFP+ |
| Receiver | PIN |
| High End Case Temperature (ºC) | 70 °C |
| Transmitter | 4x DFB Laser |
| Connector | LC |
| Media Type | Duplex SMF |
| Data Rate | 44.6 Gb/s |
| Protocol | Gigabit Ethernet OTN OTU3 or OTU4 |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310nm Band |
