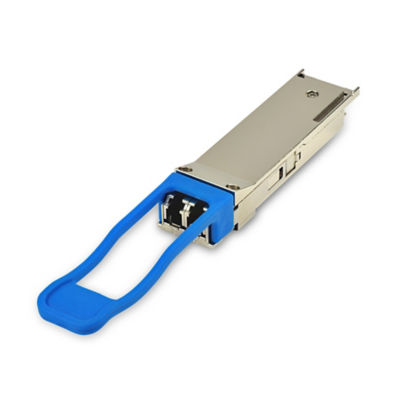

40GBASE-LR4 Lite QSFP+ Optical Transceiver Module
FTL4C1QL2C QSFP+ transceiver modules are compliant with the QSFP+ MSA2 and are compatible with IEEE 802.3ba 40GBASE-LR43up to 2 km. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU4. For details of our compliance standards, click here.
Datasheet
| Parameter | FTL4C1QL2C |
|---|---|
| Operating Distance | 2 km |
| Data Transfer Rate | 40G |
| Form Factor | QSFP+ |
| Receiver | PIN |
| High End Case Temperature (ºC) | 70 °C |
| Transmitter | 4x DFB Laser |
| Connector | LC |
| Media Type | Duplex SMF |
| Data Rate | 41.2 Gb/s |
| Protocol | Gigabit Ethernet InfiniBand |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310nm Band |
