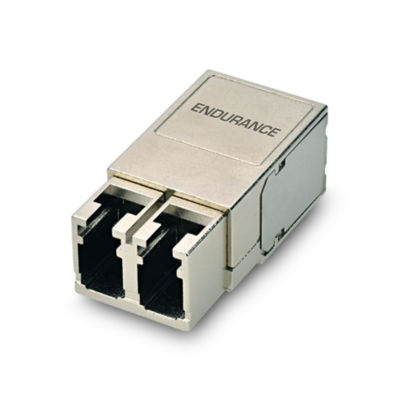

Endurance Compact Transceiver with Extended Temperature Range
Endurance transceiver modules are optimal for harsh conditions such as industrial and military applications. They have a wide operating temperature range, a metal housing to minimize effects of Electro-Magnetic Interference, two through-hole mounting posts to stabilize under shock and vibration conditions, and the pins are soldered directly to the Printed Circuit Board (PCB) to ensure constant connectivity. For details of our compliance standards, click here.
Datasheet
| Parameter | FTE14XXK1LTX |
|---|---|
| Operating Distance | 10 km |
| Data Transfer Rate | ≤10G |
| Form Factor | Endurance Compact |
| Receiver | PIN |
| Low End Case Temperature (ºC) | -40 °C |
| High End Case Temperature (ºC) | 85 °C |
| Transmitter | VCSEL |
| Connector | LC |
| Media Type | Duplex SMF |
| Data Rate | 10 Gb/s |
| Protocol | Gigabit Ethernet |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310nm Band |
