800G-DR8+OSFP Optical Transceiver

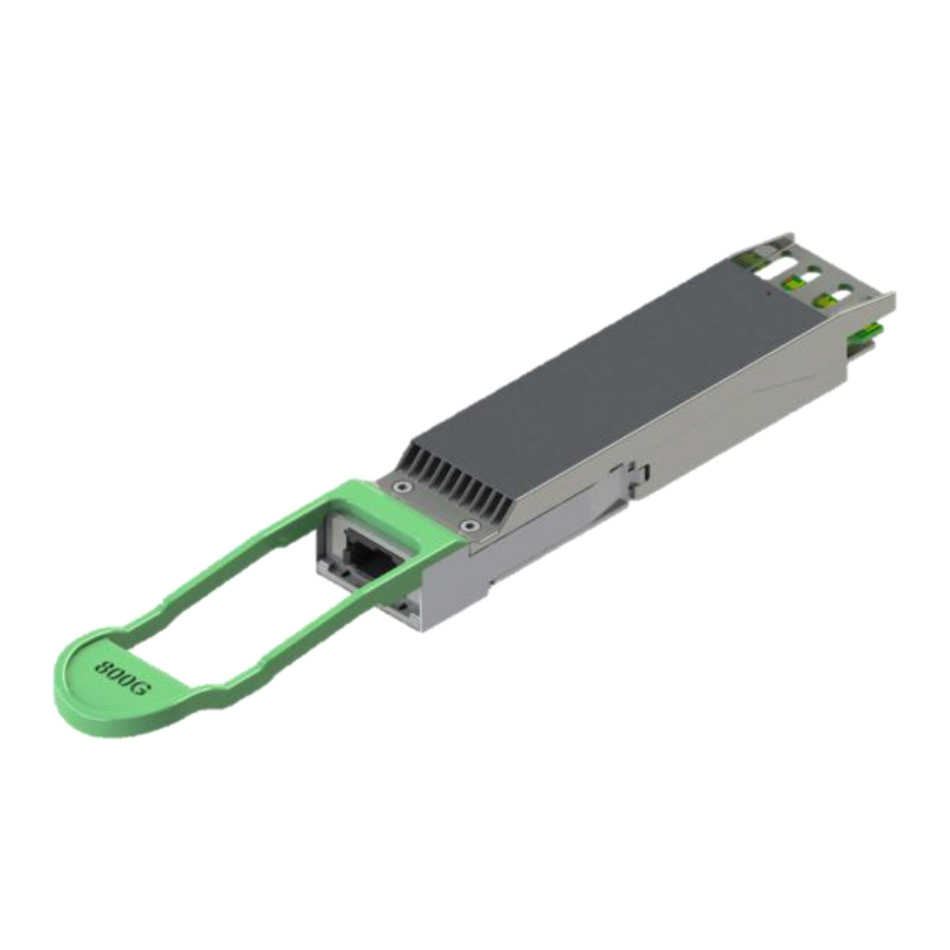

Product image of 800G-DR8+OSFP Optical Transceiver

They are compliant with the OSFP MSA, IEEE P802.3ck and IEEP802.3cu. Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. The transceiver is RoHS-6 compliant per Directive 2011/65/EU4 and Finisar Application Note AN-2038. For details of our compliance standards, click here.

Parameter FTCE4527E1PxM
Operating Distance 2km
Data Transfer Rate 800G
Form Factor OSFP
Wavelength (by band type) 1310 Band
Receiver PIN
Low End Case Temperature (ºC) 0 ˚C
High End Case Temperature (ºC) 70 ˚C
Transmitter EML
Connector MPO12
Media Type Single SMF
Data Rate 850 Gb/s
Protocol Gigabit Ethernet
Voltage Supply (V) 3.3 V
Diagnostics Digital
Wavelength (nm) 1310 nm
