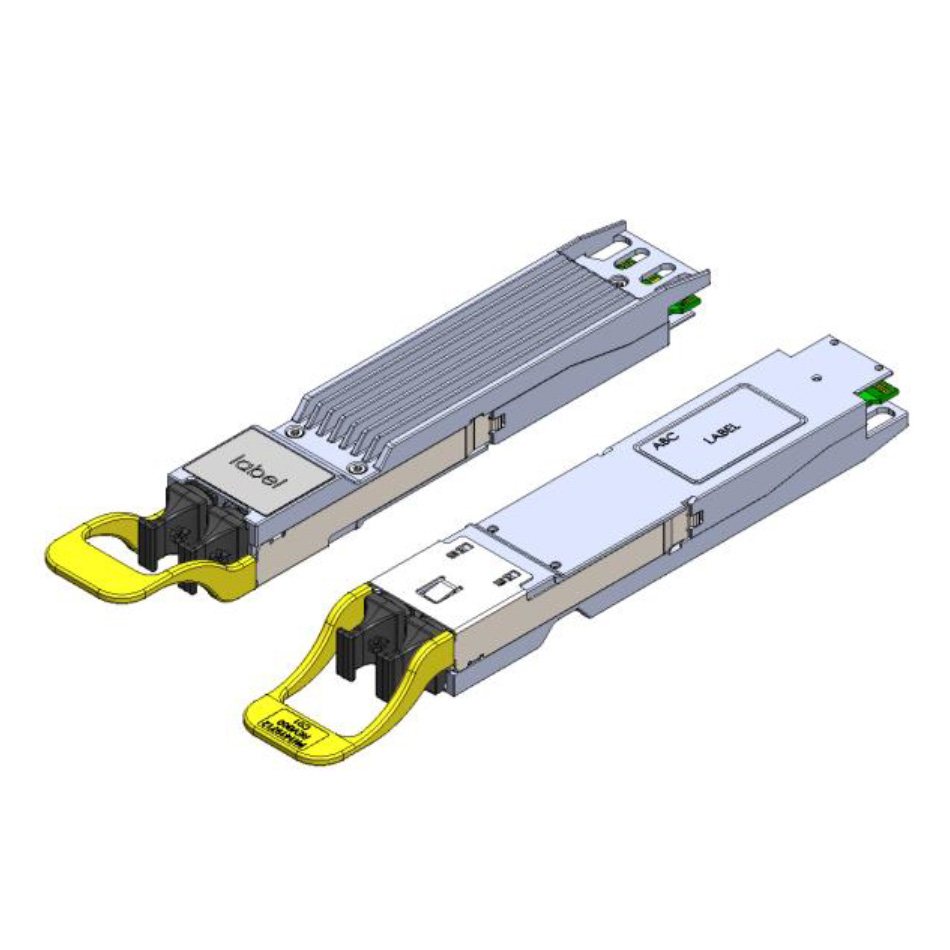

800G (2x400 DR4) OSFP Optical Transceiver
These transceivers are compliant with the OSFP MSA, IEEE 802.3ck and IEEE P802.3cu. Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTCE4527E1PxA-2F |
|---|---|
| Operating Distance | 2 km |
| Data Transfer Rate | 800G |
| Form Factor | OSFP |
| Wavelength (by band type) | 1310 Band |
| Receiver | PIM |
| Low End Case Temperature (ºC) | 0 ˚C |
| High End Case Temperature (ºC) | 70 ˚C |
| Transmitter | EML |
| Connector | Dual MPO12 |
| Media Type | Single SMF |
| Data Rate | 850 Gb/s |
| Protocol | Gigabit Ethernet InfiniBand |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310 nm |
