Datasheet

Networking

800G-DR8+OSFP Optical Transceiver

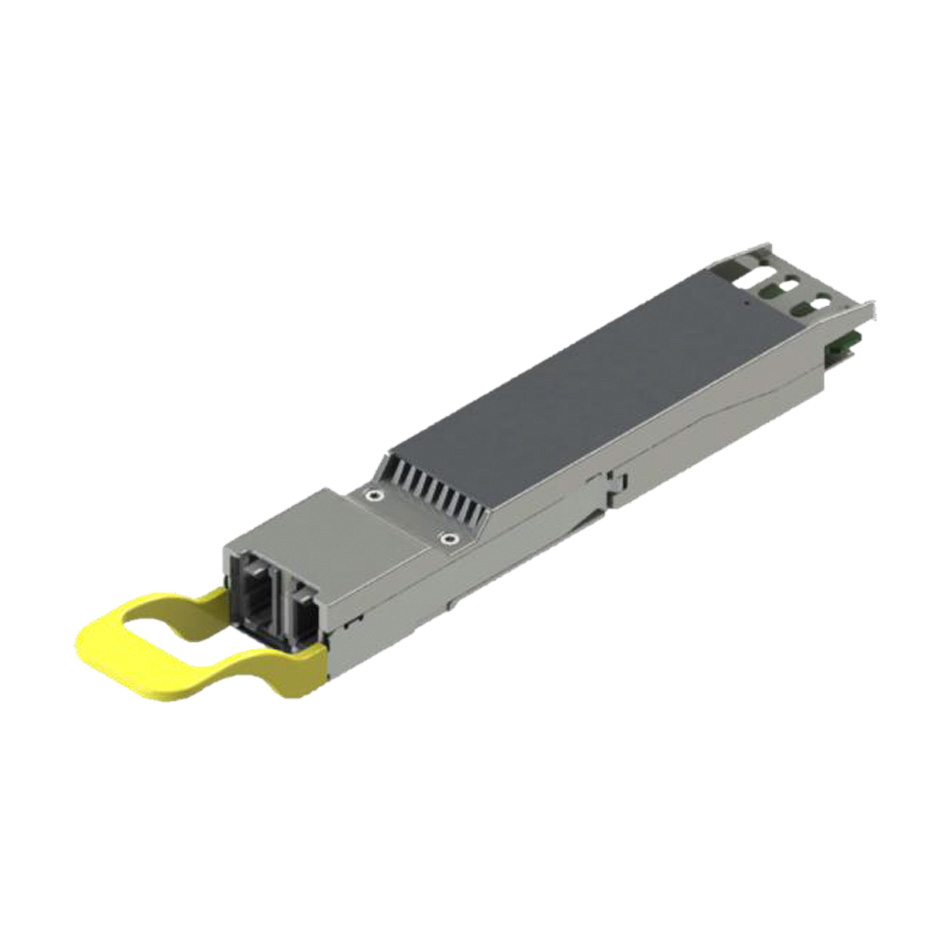

Product image of 800G-DR8+OSFP Optical Transceiver

They are compliant with the OSFP MSA, IEEE 802.3bs and IEEE P802.3ck Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. The transceiver is RoHS-6 compliant per Directive 2011/65/EU4 and Finisar Application Note AN-2038. For details of our compliance standards, click here.

Parameter FTCE4527E1PCA
Operating Distance 2 km
Data Transfer Rate 800G
Form Factor OSFP
Wavelength (by band type) 1310 Band
Receiver PIN
Low End Case Temperature (ºC) 0 ˚C
High End Case Temperature (ºC) 70 ˚C
Transmitter EML
Connector Dual MPO12
Media Type Single SMF
Data Rate 850 Gb/s
Protocol Gigabit Ethernet
InfiniBand
Voltage Supply (V) 3.3 V
Diagnostics Digital
Wavelength (nm) 1310 nm
