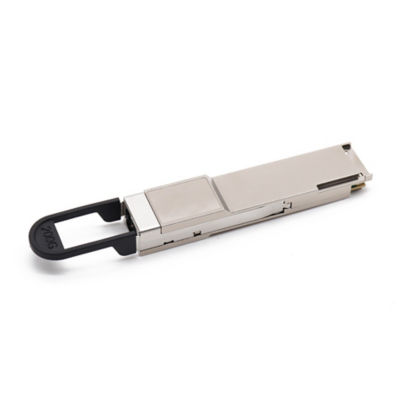

50m Parallel MMF 200G QSFP112 Optical Transceiver
FTCD8618E1PCMVR2 200G QSFP112 transceiver modules are designed for use in 200 Gigabit Ethernet links over multimode fiber up to 30m on OM3 MMF or 50m on OM4 MMF. They are compliant with the QSFP112 MSA and IEEE 802.3db 200GBASE-VR2 and IEEE 802.3ck 200GAUI-2. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP112 MSA. The transceiver is RoHS-6 compliant per Directive 2011/65/EU and Coherent Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTCD8618E1PCMVR2 |
|---|---|
| Operating Distance | 50 m |
| Data Transfer Rate | 200G |
| Form Factor | QSFP112 |
| Wavelength (by band type) | 850nm Band |
| Receiver | PAM4 |
| Low End Case Temperature (ºC) | 0 °C |
| High End Case Temperature (ºC) | 70 °C |
| Transmitter | PAM-4 VCSEL |
| Connector | QSFP112 |
| Media Type | MMF |
| Data Rate | 212.5 Gb/s |
| Protocol | Parallel MMF |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 850nm |
