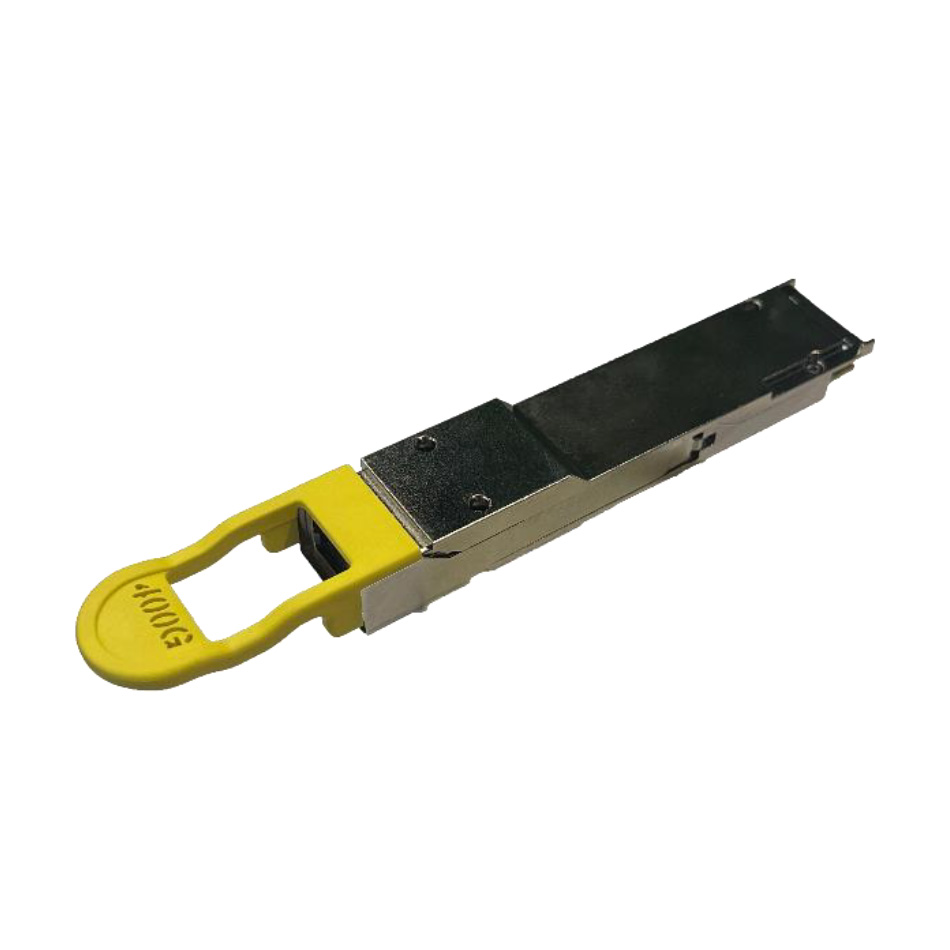

400GBASE-DR4+QSFP112 Optical Transceiver Module
These transceivers are compliant with the QSFP112 MSA, and portions of IEEE P802.3. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP 56 MSA and Finisar Application Note AN-20xx. The transceiver is RoHS-6 compliant per Directive 2011/65/EU4 and Finisar Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTCD4538E1PCM |
|---|---|
| Operating Distance | 2 km |
| Data Transfer Rate | 400G |
| Form Factor | QSFP112 |
| Wavelength (by band type) | 1310 Band |
| Receiver | PIN |
| Low End Case Temperature (ºC) | 0 ˚C |
| High End Case Temperature (ºC) | 70 ˚C |
| Transmitter | EML |
| Connector | MPO12 |
| Media Type | Single SMF |
| Data Rate | 425 Gb/s |
| Protocol | Gigabit Ethernet |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310 nm |
