400G FR4 OSFP Optical Transceivers

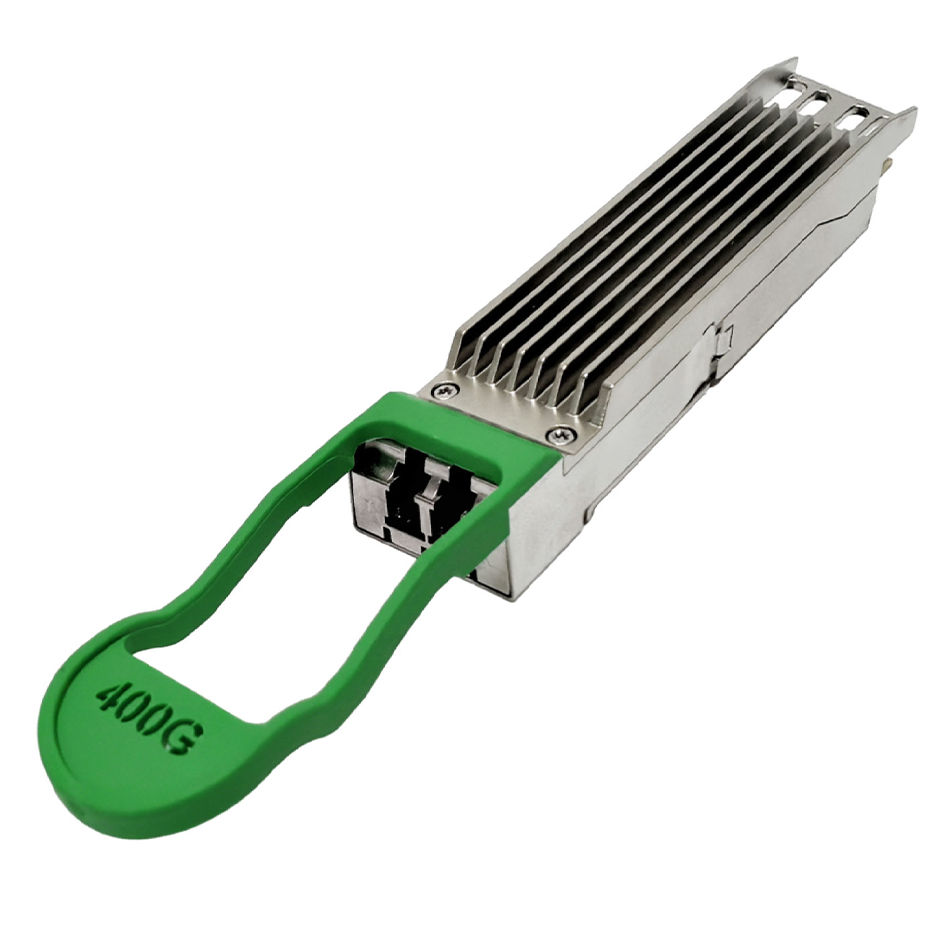

FTCD4315E1PCL 400G FR4 OSFP transceiver modules are designed for use in 400 Gigabit Ethernet links of up to 2km of single mode fiber. They are compliant with the OSFP MSA, IEEE P802.3cu and portions of P802.3bs. Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Parameter |
FTCD4315E1PCL |
| Operating Distance | 2 km |
| Data Transfer Rate | 425 Gb/s |
| Form Factor | OSFP |
| Receiver | PIN |
| Low End Case Temperature (ºC) | 0°C |
| High End Case Temperature (ºC) | 70°C |
| Transmitter | PAM4 |
| Connector | LC |
| Media Type | SMF |
| Data Rate | 425 Gb/s |
| Protocol | Gigabit Ethernet |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310 nm |
