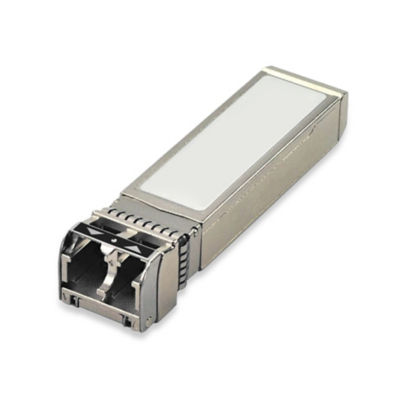

50GBASE-SR 100m 850nm Multi-Mode SFP56 Optical Transceiver
FTLF8556x1yCz SFP56 transceivers are compatible with the applicable requirements defined in SFF-8431 (1), and compliant with the applicable requirements defined in SFF-8432 (2), IEEE 802.3cd (3), IEEE 802.3.bs (4), and RoHS compliant as described in Application Note AN-2038 (6).TheFTLF8556x1yCz SFP56 transceivers use limiting electrical interface receivers and internal re-timers, while any required Forward Error Correction (FEC) support has to reside in the host IC. Digital Diagnostics functions are available via a 2-wire serial interface, as per SFF-8472 (7). For details of our compliance standards, click here.
Datasheet
| Parameter | FTLF8556X1YCZ |
|---|---|
| Operating Distance | 100 m |
| Data Transfer Rate | 40G |
| Form Factor | SFP56 |
| Receiver | PIN |
| High End Case Temperature (ºC) | 70 °C |
| Transmitter | VCSEL |
| Connector | LC |
| Media Type | Duplex MMF |
| Data Rate | 53.125 Gb/s |
| Protocol | Gigabit Ethernet |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 850nm Band |
