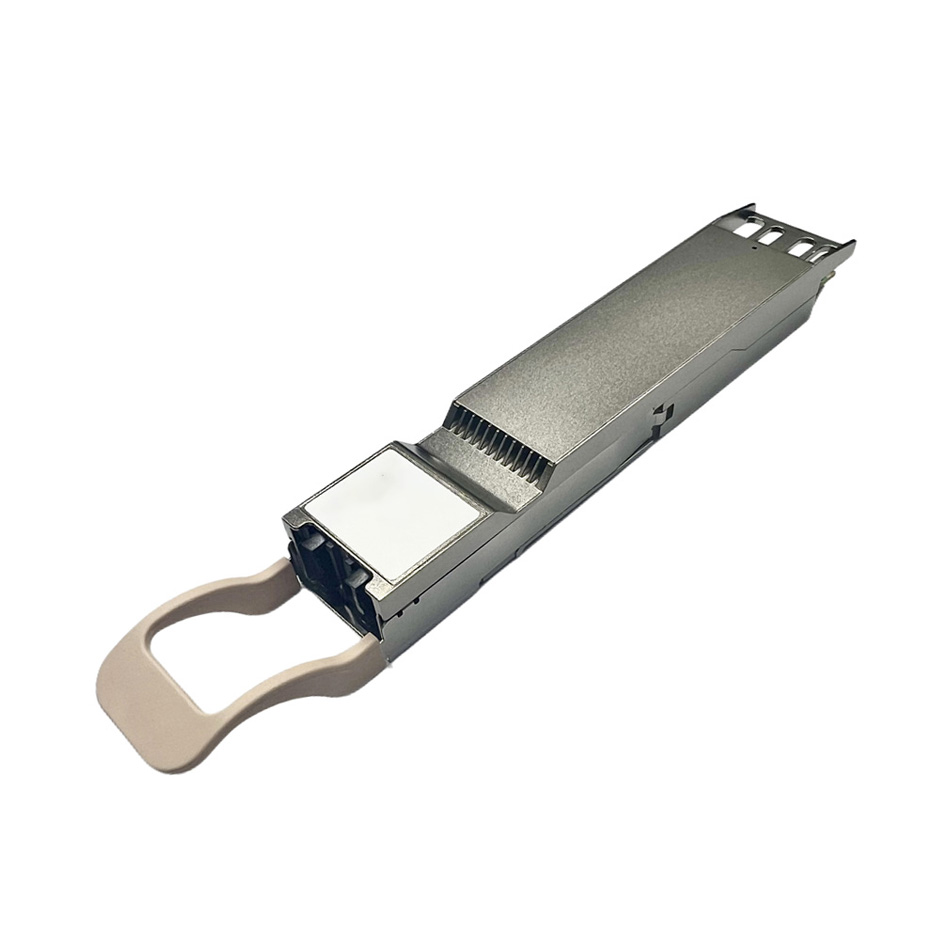

800G (2×400 SR4) OSFP Optical Transceiver
FTCE8627E1PCA 2×400-SR4 OSFP transceiver modules are compliant with the OSFP MSA, IEEE P802.3db/D3.0 and IEEE P802.3ck. Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Parameter |
FTCE8627E1PCA |
| Operating Distance | 100 m |
| Data Transfer Rate | 800G |
| Form Factor | OSFP |
| Receiver | PIN |
| High End Case Temperature (ºC) | 70°C |
| Transmitter | VCSEL |
| Connector | Dual MPO 12 |
| Media Type | Parallel MMF |
| Data Rate | 850 Gb/s |
| Protocol | Gigabit Ethernet InfiniBand |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 850nm Band |
