Laser Components and Accessories
Single-Mode Fiber-Coupled Laser Diodes
Choose from several wavelengths (976 nm, 1030 nm, 1064 nm), CW or pulsed operation, and different wavelength narrowing/broadening options, each coupled into a single-mode PM fiber.

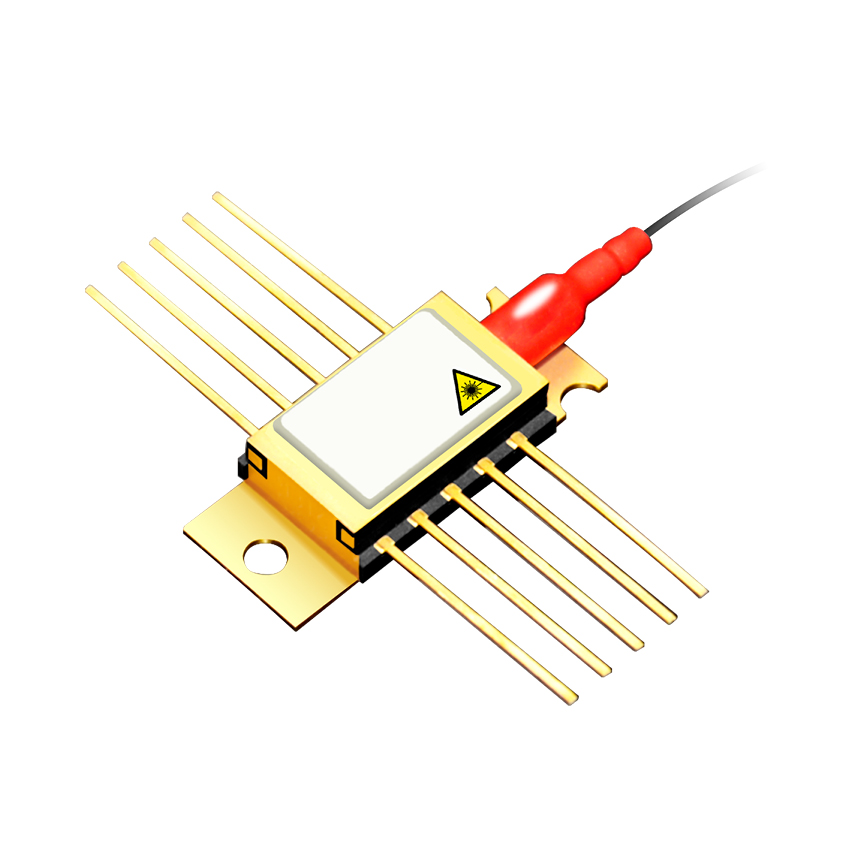

Our laser diodes are hermetically sealed in a 10-pin mini-butterfly package and include an internal thermoelectric heat pump and monitor photodiode. Applications include pumping fiber lasers and EDFA devices, sensing, spectroscopy, and frequency conversion.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
Mini-Butterfly CM Series Laser Diodes
Choose from a broad performance range: from CW to picosecond pulsing, from narrowband to broadband output ideal for avoiding SBS when pumping fiber lasers.
- 976nm Mini-Butterfly Laser Diode Pump Module with FBG and PM Fiber
- Pulsed 1064nm High-Power Mini-Butterfly Laser Diode Module
- Pulsed 1064nm Narrow Bandwidth FBG High-Power Mini-Butterfly Laser Diode Module
- Pulsed 1064nm Ultra Broad Bandwidth FBG High-Power Mini-Butterfly Laser Diode Module
- Wavelength Stabilized 1064nm 1030nm High-Power Mini-Butterfly DFB Laser Diode Module
Model Number |
Pulse Width (ns) |
Wavelength Control Details |
Center Wavelength (nm) |
Max. Peak Power (W) |
|
CM97-1000-76PM |
CW |
Narrowband FBG |
976 ± 1 |
1 |
|
CM97A1064 |
5-500 |
NA |
1064 ± 5 |
1.5 |
|
CM97A1064BFBG |
5-500 |
Broadband FBG |
1064 ± 2 |
1.5 |
|
CM97A1064NFBG |
5-500 |
Narrowband FBG |
1064 ± 1 |
1.5 |
|
CMDFB1064A |
0.1-200 |
Intracavity DFB |
1063.5 ± 2 |
0.4-0.8 |
|
CMDFB1030A |
0.1-200 |
Intracavity DFB |
1030 ± 2 |
0.4-0.8 |
|
