Laser Components and Accessories

Fiber-Coupled Modules


Simplify implementation of diode lasers in fiber and solid-state laser pumping, materials processing, and medical therapeutics.

Available over a broad range of wavelengths (630 nm – 2 µm), with output powers from a few watts to kilowatts out of fiber diameters from 100 µm and up. Choose numerous features including line narrowing and wavelength stabilization configurations as well as monitoring options.

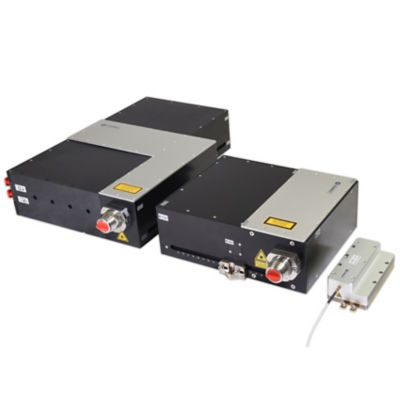

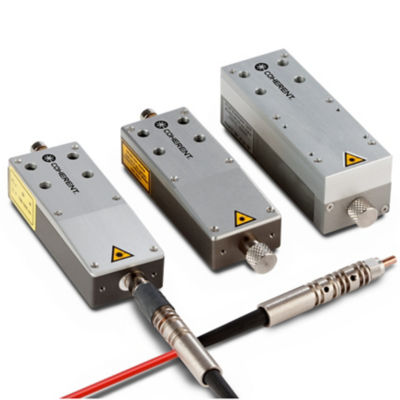

Fiber-Coupled Modules Overview

Choose source type from single emitters, single bars, multi bars, and tailored bars, each available with many different wavelengths, powers, and fiber core sizes.

View our Product Finder

Product Specifications

Diode Laser Type

Fiber Core [µm]

Wavelength [nm]

Max. Power [W]

Operating Mode

Features

Single Emitters

106.5

793

40

CW



200

878.6

150

CW

VBG Narrow Linewidth, EL Series

200

878.6

150

CW

VBG Narrow Linewidth, P Series

400

878.6

150

CW

VBG Narrow Linewidth, EL Series

200

885

150

CW

VBG Narrow Linewidth, EL Series

200

885

150

CW

VBG Narrow Linewidth, P Series

400

885

150

CW

VBG Narrow Linewidth, EL Series

200

888

150

CW

VBG Narrow Linewidth, EL Series

200

888

150

CW

VBG Narrow Linewidth, P Series

400

888

150

CW

VBG Narrow Linewidth, EL Series

106.5

976

20

CW

VBG Narrow Linewidth

106.5

976

30

CW



200

976

400

CW

VBG Narrow Linewidth

Standard Bars

400

638

5

CW



400

675

10

CW



200

790

50

CW

VBG Narrow Linewidth

105

793

32

CW



200

793

300

CW



400

793

30

CW

VBG Narrow Linewidth

400

793

220

CW



400

794.7

80

CW

VBG Narrow Linewidth

400

806.5

40

CW

VBG Narrow Linewidth

800

807.5

25

CW

FAP Series

105

808

35

CW



200

808

30

CW

VBG Narrow Linewidth

200

808

300

CW



400

808

100

CW

VBG Narrow Linewidth

400

808

100

QCW



400

808

500

CW



600

808

25

CW

FAP Series

800

808

50

CW

FAP Series

800

808

500

QCW



800

808

600

QCW, Long Pulse



600

810

50

CW

FAP Series

800

810

70

CW

FAP Series

400

879

40

CW

VBG Narrow Linewidth

400

880

40

CW

VBG Narrow Linewidth

400

880

480

CW



200

915

300

CW



400

915

500

CW



200

940

300

CW



400

940

500

CW



800

940

30

CW

FAP Series

800

940

40

CW

FAP Series

800

940

500

QCW



800

940

600

QCW, Long Pulse



400

975.7

400

CW

VBG Narrow Linewidth

105

976

40

CW



200

976

240

CW

VBG Narrow Linewidth

200

976

300

CW



400

976

100

QCW



400

976

400

CW

VBG Narrow Linewidth

400

976

500

CW



400

979.5

400

CW

VBG Narrow Linewidth

400

980

30

CW

Dual Wavelength

500

980

150

CW

Multi-Wavelengths (2-Lambda)

800

980

40

CW

FAP Series

200

981

30

CW

VBG Narrow Linewidth

400

981

200

CW

VBG Narrow Linewidth

400

1064

30

CW



400

1210

40

CW



400

1310

14

CW



200

1470

12

CW



400

1470

12

CW

Multi-Wavelengths (3-Lambda)

400

1470

15

CW

Dual Wavelength

400

1470

80

CW



500

1470

50

CW

Multi-Wavelengths (2-Lambda)

400

1520

12

CW

Multi-Wavelengths (3-Lambda)

200

1530

12

CW



400

1550

12

CW

Multi-Wavelengths (3-Lambda)

400

1550

30

CW



400

1940

6

CW



600

1940

30

CW



Tailored Bars

400

638

40

CW



200

976

600

CW

NA 0.22

300

976

1200

CW



400

976

600

CW

NA 0.11

200/240

976

250

CW



225/240

976

270

CW
