THz-Raman Filter Components

THz-Raman Filter Components

With improved performance over thin film and gel filters, these compact and economical components are ideal for creating high-performance custom systems with access to low frequency Raman spectra < 150 cm-1.

Ideal for academic or OEM applications. Filters come pre-mounted in housings for use with standard 1” or ½" mirror mounts. Compact, pre-aligned assemblies guarantee correct pitch and yaw angle of each filter to deliver fully optimized performance.

THz-Raman® Filter Components Summary

Multiple wavelengths and configuration options are available. All filters use the same technology to produce optimal system performance from a compatible laser.

Datasheets
Filter Components
  Features Available Wavelengths (nm) Diameter (mm) Clear Aperture (mm)


SureBlockTM
Notch Filters


  • Optical Density > 4
  • Transition width < 10 cm-1
  • Angle tunable center wavelength
  • Environmentally stable operation
  • No degradation over time
  • Requires compatible wavelength stabilized and collimated, ASE-free laser for optimal performance

488, 514, 532, 633, 785, 808, 976, 1064

25.4

 9

NoiseBlockTM 90/10
Beamsplitter Filters
  • Diffraction Efficiency > 90%
  • Bandwidth < 10 cm-1
  • Operating angle 8-12 degrees
  • Angle tunable center wavelength
  • Environmentally stable operation
  • No degradation over time

488, 514, 532, 633, 785, 808, 976, 1064

25.4

9

NoiseBlock
ASE Filters
  • Diffraction Efficiency > 90% (~70% for 405 nm)
  • Bandwidth < 10 cm-1
  • Operating angle 8-12 degrees
  • Angle tunable center wavelength
  • Environmentally stable operation
  • No degradation over time

405, 488, 514, 532, 633, 785, 808, 976, 1064

12.7

4.5
Filter Assemblies
  Features Available Wavelengths (nm) Dimensions (mm)

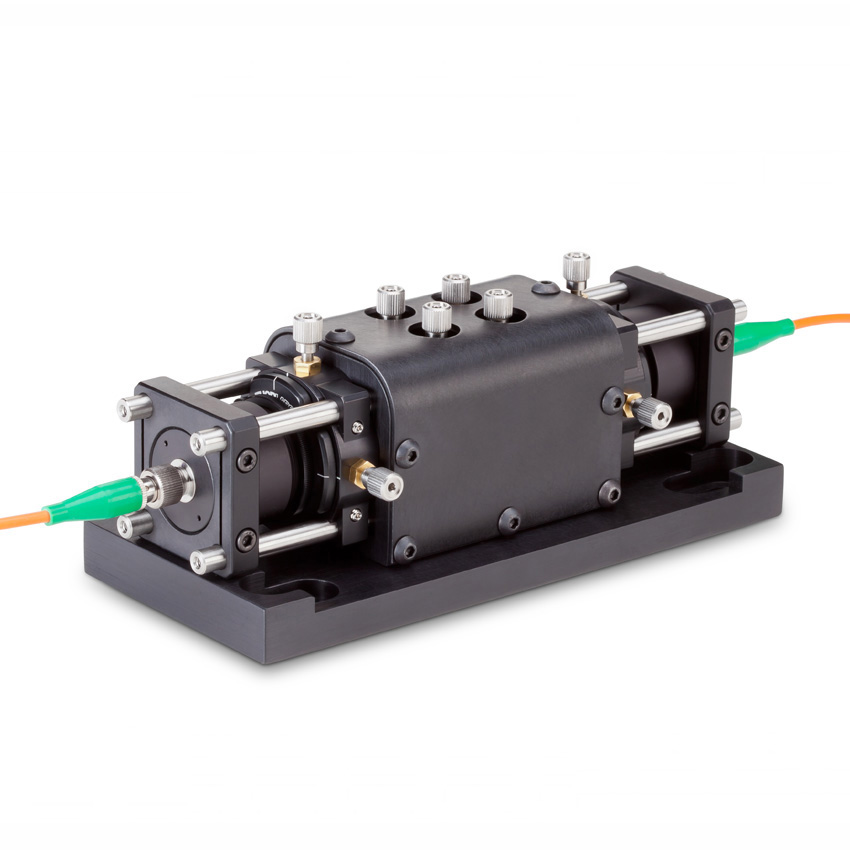

SureBlock XLF
filter module
  • Includes 2 pre-aligned SureBlock notch filters
  • Free space or fiber optic input and output options
  • Bandwidth < 10 cm-1
  • Spatial filtering reduces collected Rayleigh scatter
  • Angle tunable center wavelength
  • Environmentally stable operation
  • No degradation over time

488, 514, 532, 633, 785, 808, 976, 1064

75 x 182 x 72

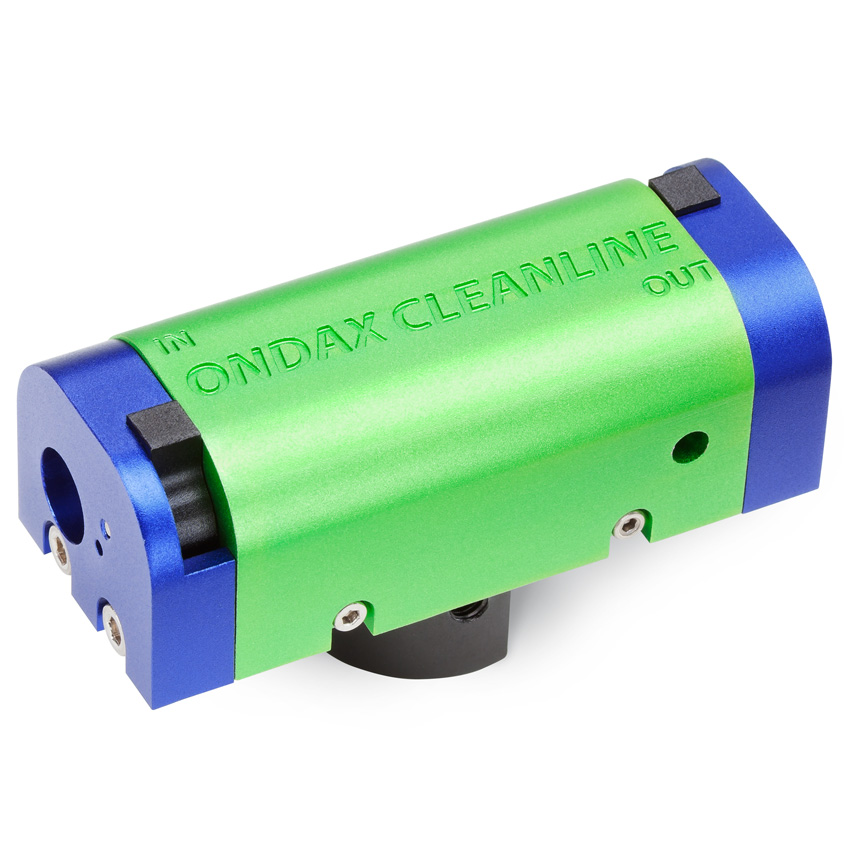

CleanLineTM-FS
ASE clean-up


  • Compact, pre-aligned package
  • Integrated alignment targets
  • Built-in wavelength fine tuning adjustment
  • ASE suppression – better than –80 dB below laser line
  • 0.1 nm bandwidth
  • Temperature stability 10 pm/°C
  • High transmission throughput

405, 532, 633, 785

30 x 73 x 37

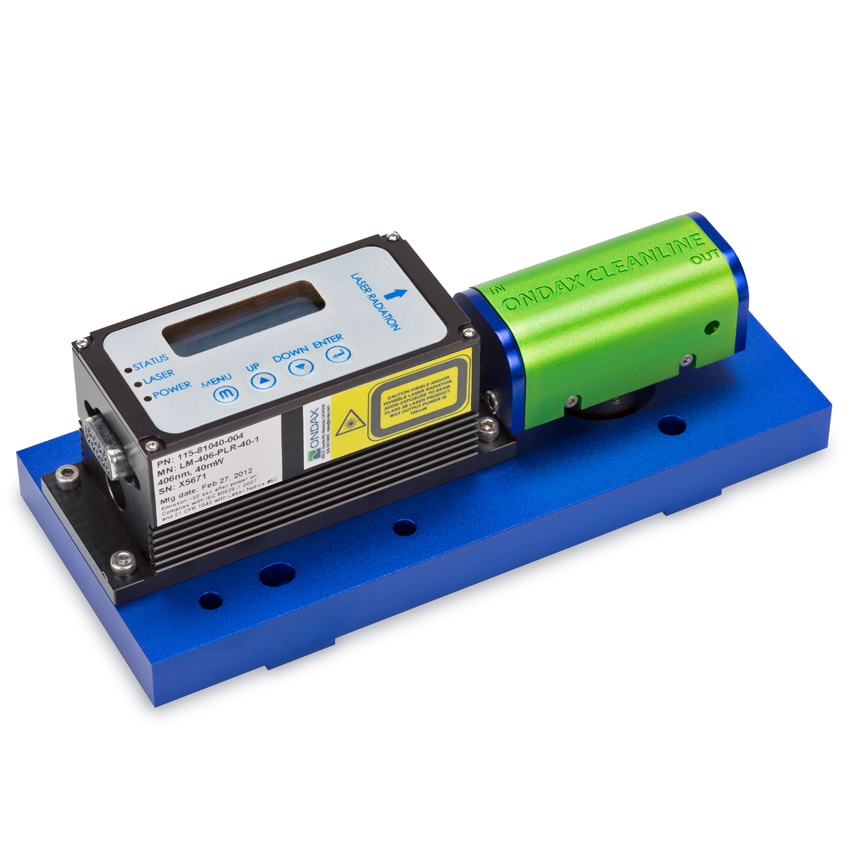

CleanLine-LM
laser module
  • Compact, pre-aligned package incorporates laser, isolator and CleanLine-FS platform
  • Free space, collimated output beam
  • Ideal for use with SureBlock XLF or notch filters



405, 633, 785

219 x 77 x 60
