Laser Components and Accessories
Fiber-Coupled Single Bar Diode Laser Module

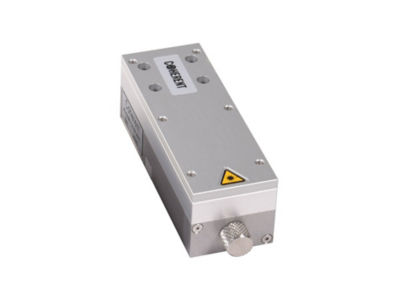

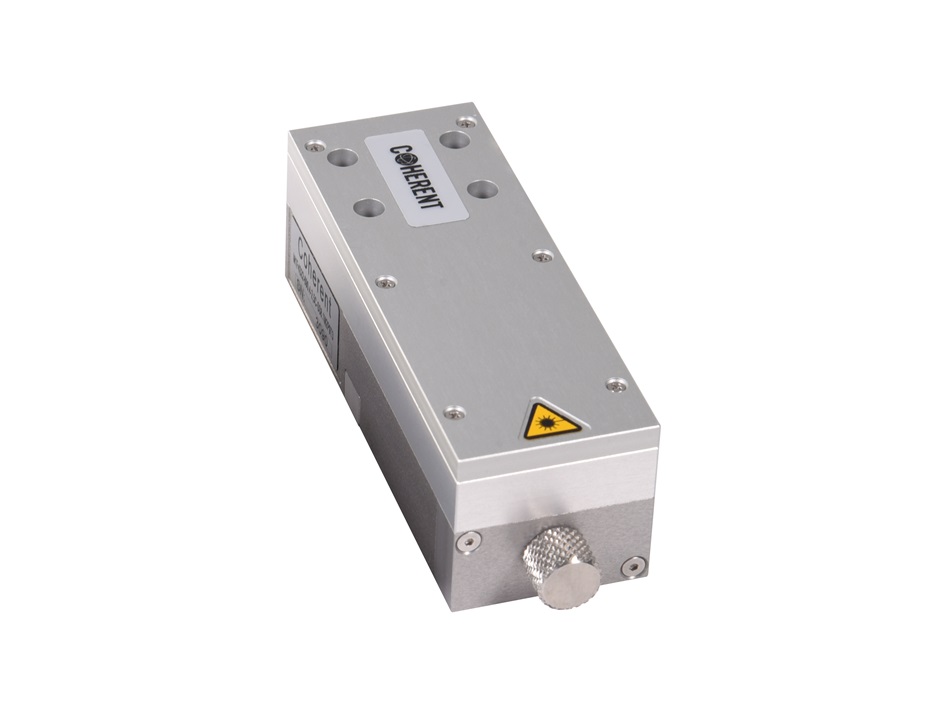

1470nm, 15 W, 400 μm Ø, Conduction-Cooled, Fully-Featured, Fiber-Coupled Single Bar Diode Laser Module
Our fiber-coupled single bar modules deliver outstanding optical performance across a broad wavelength range from 630 nm to 2 µm, supporting output powers up to 50 W continuous wave (CW) and 250 W quasi-continuous wave (QCW). Designed for high-demand environments, these modules combine reliability, efficiency, and configurability in a compact footprint.
Parameter |
MDL100401803 |
Center Wavelength Range3 (nm) |
1470 |
Output Power2 (W) |
15 |
Fiber Core Diameter (μm) |
400 |
Operating Condition |
CW |
Package |
Fiber-Coupled Single Bar |
