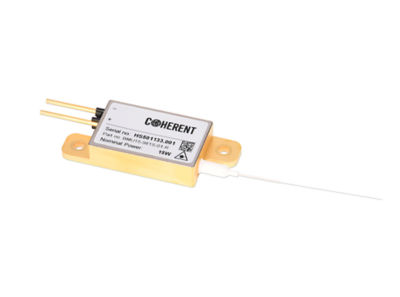

Factor Series Fiber-Coupled Diode Laser Module
976 nm, ≥28 W, 106.5 µm, VBG, CW, Conduction-Cooled, Single Emitter-Based
The FACTOR Series offers the highest efficiencies and best reliability for pump wavelengths in the range of 808nm, 88x nm, 793 nm and 9xx nm for pumping Nd3+, Tm3+ and Yb3+ doped materials, respectively. It is available between 1 and 22 single emitters, ranging from power levels of a few Watts up to 400 W.
Parameter |
MDL-BMU30-976S-01-R |
Center Wavelength Range3 (nm) |
976 |
Output Power2 (W) |
≥28 |
Fiber Core Diameter (μm) |
106.5 ±1.5 |
Operating Condition |
CW |
Package |
Fiber-Coupled Single Emitters |
