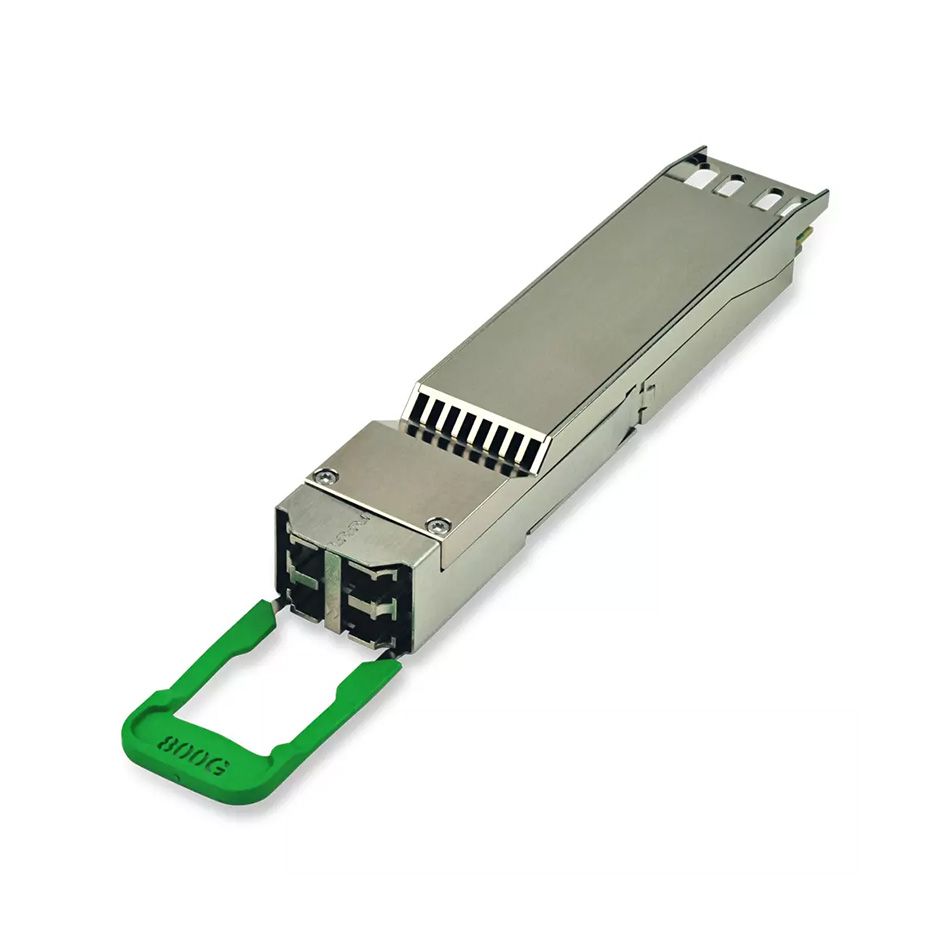

800G (2×400 DR4) OSFP Optical Transceiver
FTCE4517E1PxB (2 x DR4) OSFP transceiver modules are compliant with the OSFP MSA, IEEE 802.3bs and IEEE P802.3ck. Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTCE4717E1PCB |
|---|---|
| Operating Distance | 500 m |
| Data Rate | 850 Gb/s |
| Data Transfer Rate | 800G |
| Protocol | Gigabit Ethernet InfiniBand |
| Connector | Dual MPO 12 |
| Media Type | Duplex SMF |
| Form Factor | CFP/CFP2/CFP4/CFP8 |
| Low End Case Temperature (ºC) | 0 °C |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| High End Case Temperature (ºC) | 85 °C |
| Wavelength (nm) | 1310nm |
| Transmitter | EML |
| Receiver | PIN |
