Transimpedance Amplifiers (TIA)
High-performance TIAs for next-generation optical receivers.
Coherent’s high-speed transimpedance amplifiers (TIAs) deliver best-in-class noise performance, excellent linearity and power efficiency for data rates up to 224Gbps PAM-4 and up to 64GBaud coherent modulation. These enable high-performance receiver operation over a wide optical power range.
Designed for AI infrastructure, hyperscale data centers, and high-speed optical modules - both IMDD and coherent - our feature-rich TIAs enable system designers to accelerate the develoment of next-generation high-performance receivers while optimizing solution cost and power efficiency.
Key Features
- Deliver best-in-class noise- and linearity performance for high-sensitivity, high-speed optical receivers.
- Automatic gain control that supports a large range of optical signal levels (OMA).
- Serial bus interface for control and analog/digital performance monitoring interfaces
- Combine high-performance with excellent power efficiency.
- Support for symbol rates from 28GBaud to 112GBaud IMDD and 64GBaud coherent (DCO).
Part |
Modulation |
#Channels |
Baud Rate (GBaud) |
Power Consumption per Channel (mW) @25°C |
IRN |
Noise BW (GHz) |
Channel Pitch (µm) |
Package |
Applications |
CHR1094 |
Coherent |
4 |
64 |
290 |
14 |
40 |
625 |
Die, Wire Bonded |
400G ZR/ZR+ |
CHR1074 |
PAM4/NRZ |
4 |
112 |
238 |
17.6 |
60 |
750 |
Die, Wire Bonded, with AuSn bumpsfor stacked PD | 800G DR4/FR4/LR4 |
CHR1065 |
PAM4/NRZ |
4 |
56 |
227 |
11.5 |
35 |
750 |
Die, Wire Bonded |
400G DR4/FR4/LR4/SR4 |

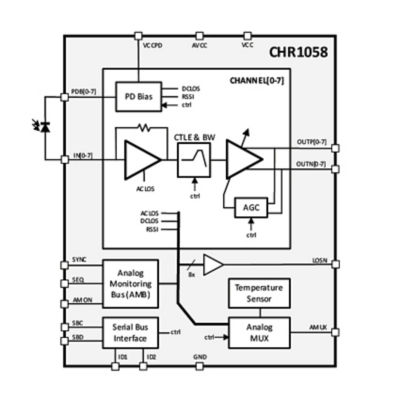

CHR1058 |
PAM4/NRZ |
8 |
28.9 |
178 |
8.1 |
27 |
250 |
Die, Flip-Chip Cu-Pillar |
400G SR8/SR4.2 |

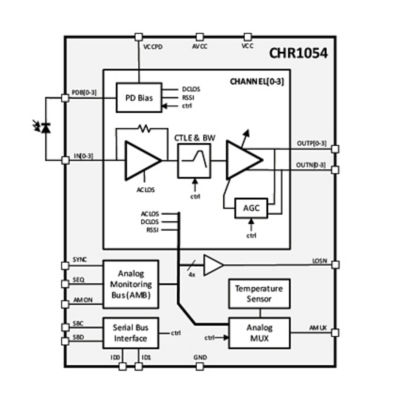

CHR1054 |
PAM4/NRZ |
4 |
28.9 |
178 |
8.1 |
27 |
250 |
Die, Wire Bonded |
200G/FR4/SR4 |
CHR1051 |
PAM4/NRZ |
1 |
28.9 |
178 |
8.1 |
27 |
N/A |
Die, Wire Bonded |
64G Fibre Channel |
