Networking
Laser Driver Amplifiers
High-performance laser drivers for next-generation optical transmitters.
Coherent’s portfolio of laser driver amplifiers - comprising both direct modulation drivers and modulator drivers - delivers precise modulation control, low power consumption, and optimized signal integrity for high-speed optical interconnects.
Built on decades of expertise in laser and transceiver design, our drivers are engineered to produce well-behaved, easily equalizable optical signals, enabling higher data rates and improved system performance across AI, hyperscale, and datacom applications.
From proven designs to next-generation solutions, Coherent helps system designers maximize transmitter performance while minimizing power and complexity.
Key Features

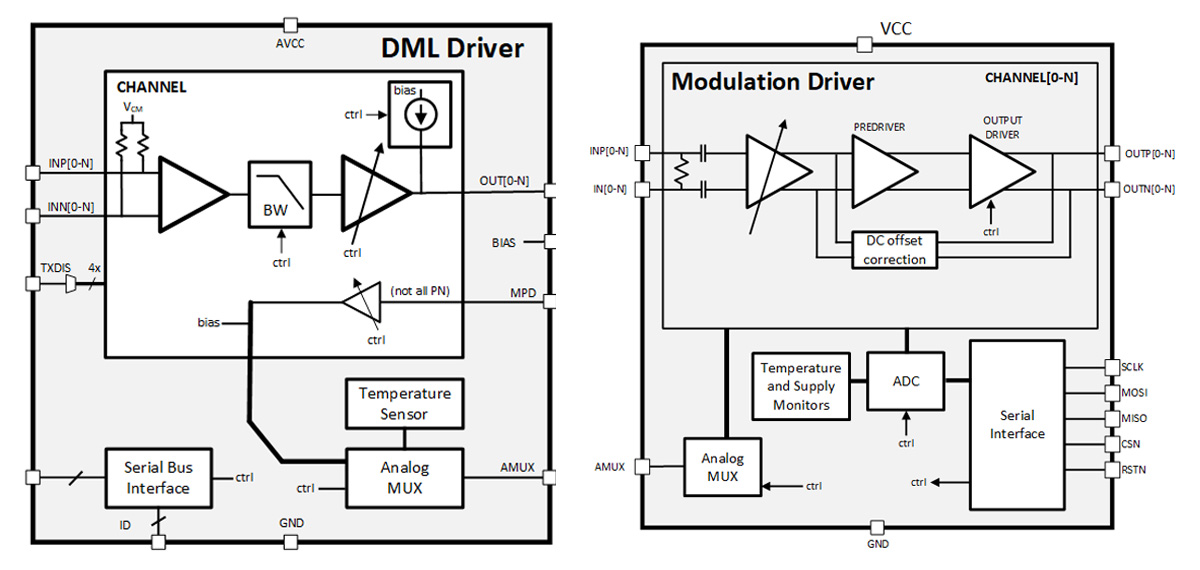

- Modulator drivers with high output swing and well-behaved frequency response that simplifies equalization.
- Directly Modulated Laser (DML) drivers for a wide range of lasers (DFB, VCSEL, BH), providing programmable bias,
- modulation amplitude, and burn-in current.
- Output signal monitoring and control functions, including optical feedback for DML drivers.
- Deliver high-quality transmit signals while optimizing power efficiency and solution cost.
- Fully validated in production-grade optical transceiver environments.
Part |
Modulation |
#Channels |
Baud Rate |
Power Consumption per Channel (mW) |
Laser Types |
Channel Pitch (µm) |
Output Swing |
Package |
|
Vppd |
mApp |
||||||||
CHR2094 |
Coherent |
4 |
64 |
418 |
MZM |
450/650/450 |
3.0 |
Die, Wire Bonded |
|
CHR2075 |
PAM4/NRZ |
4 |
112 |
441 |
SiPho |
625 |
3.0 |
Die, Wire Bonded |
|
CHR2055 |
PAM4/NRZ | 4 |
28.9 |
76 |
DFB |
800 | 40 |
Die, Wire Bonded |
|

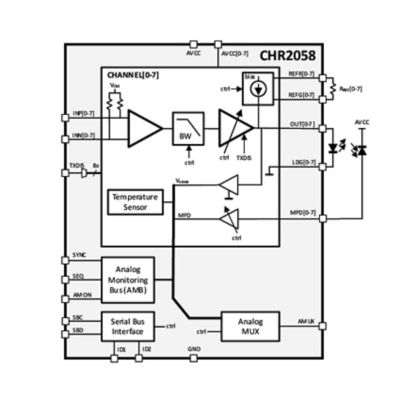

CHR2058 |
PAM4/NRZ | 8 |
28.9 |
92 |
VCSEL | 250 | 10 |
Die, Flip-Chip Cu-Pillar |
|
