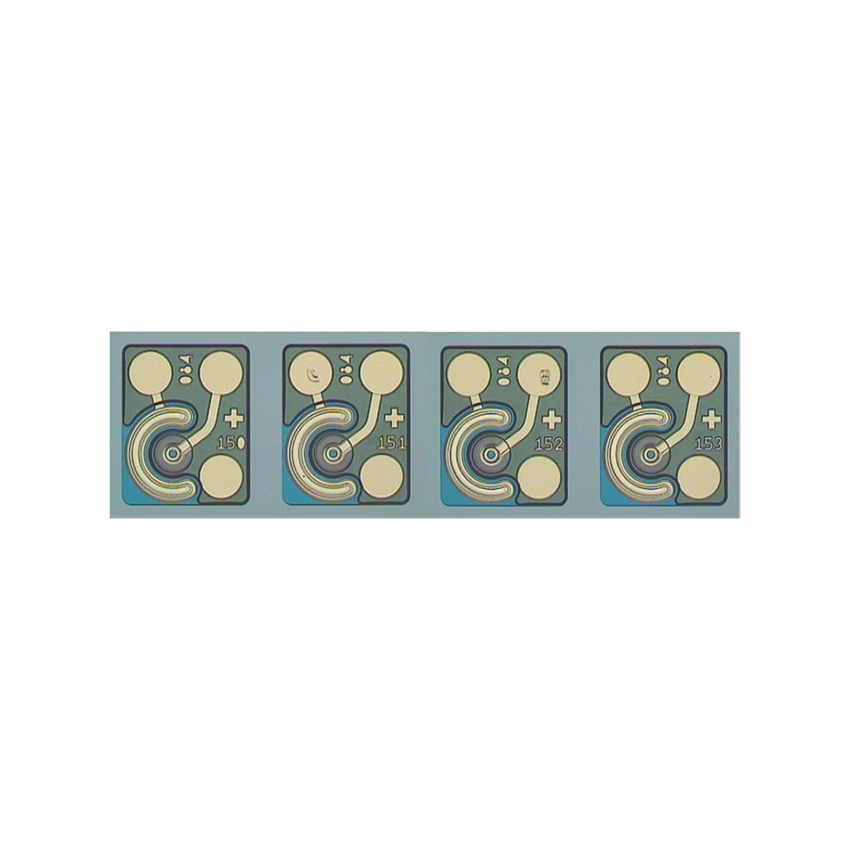

VCSEL Arrays with Dual Top Contacts
Use our 850 nm VCSEL arrays when you need to meet stringent specifications for high-speed data communications, supporting a wide range of data rates from 10G to 100G.

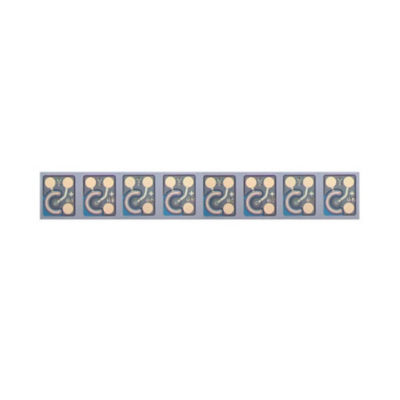

Each of the VCSEL emitters operates in multiple transverse and single longitudinal modes and emits a circular symmetric beam with low divergence that can be efficiently coupled into 50/125 and 62.5/125µm multimode fibers. Available as single chip, 4 and 12 channel arrays.
850 nm VCSEL Arrays – Product Options
Choose these VCSEL arrays for their low-noise output as well as their low threshold and operation currents. All models are RoHs compliant and feature high reliability.
Model Number |
Number of Channels |
Max Data Rate (Gbps) |
RMS Spectral Bandwidth (nm) |
Die Length (µm) |
Die Width (µm) |
Die Height (µm)
|
APA4301010002 |
1 |
10 |
≤0.4 |
230±20 |
280±20 |
150±15 |
APA4301040002 |
4 |
10 |
≤0.4 |
980±20 |
280±20 |
150±15 |
APA4301120002 |
12 |
10 |
≤0.4 |
2980±20 |
280±20 |
150±15 |
APA4401010001 |
1 |
14 |
≤0.65 |
230±20 |
280±20 |
150±15 |
APA4401040001 |
4 |
14 |
≤0.65 |
980±20 |
280±20 |
150±15 |
APA4401120001 |
12 |
14 |
≤0.65 |
2980±20 |
280±20 |
150±15 |
APA4501010001 |
1 |
25 |
≤0.65 |
230±20 |
280±20 |
150±15 |
APA4501040001 |
4 |
25 |
≤0.65 |
980±20 |
280±20 |
150±15 |
APA4501120001 |
12 |
25 |
≤0.65 |
2980±20 |
280±20 |
150±15 |
APA4501010002 |
1 |
25 |
≤0.60 |
230±20 |
280±20 |
150±15 |
APA4501040002 |
4 |
25 |
≤0.60 |
980±20 |
280±20 |
150±15 |
APA4601040301 |
4 |
28 |
≤0.60 |
980±20 |
280±20 |
150±15 |
APA4601040302 |
4 |
50 |
≤0.40 |
980±20 |
280±20 |
150±15 |
APA4701040003 |
4 |
100 |
≤0.55 |
980±20 |
280±20 |
200±15 |
