Datacom Photodiode

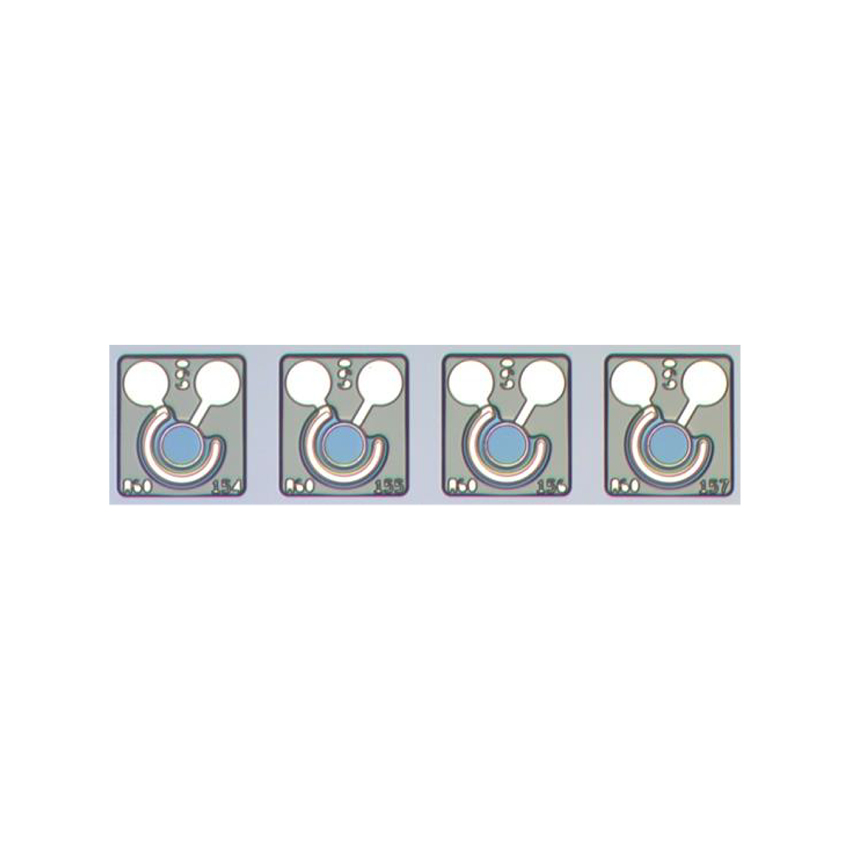

Use our 850 nm photodiode arrays when you need to meet stringent specifications for high-speed data communications, with a choice of 1, 4, or 12 channels.
These high-performance, high-reliability devices are engineered with low electrical parasitics for maximum data rates up to 14 Gbps, 28 G, 50G, and 100G. They feature low operating voltage with a topside anode and cathode configuration for easy integration.
850 nm Photodiode Arrays – Product Options
Use these compact arrays when you need high (~0.60 A/W) responsivity, low (typ. a few pA) dark current, and low (~125 fF) capacitance. They are Halogen & RoHS compliant.
Model Number |
Number of Channels |
Max Data Rate (Gbps) |
Die Length (µm) |
Die Width (µm) |
Die Height (µm) |
APA1101010000 |
1 |
14 |
225±25 |
245±20 |
150±15 |
APA1101040000 |
4 |
14 |
975±20 |
245±20 |
150±15 |
APA1101120000 |
12 |
14 |
2975±20 |
245±20 |
150±15 |
APA1201010000 |
1 |
25 |
220±20 |
240±20 |
150±15 |
APA1201040000 |
4 |
25 |
970±20 |
240±20 |
150±15 |
APA1201120000 |
12 |
25 |
2970±10 |
240±20 |
150±15 |
