50 GHz and 35 GHz Single Photodiodes
Use our photodiodes for communications or R&D applications needing either C- or dual-band operation and take advantage of their integrated chip biasing and optional low PDL.

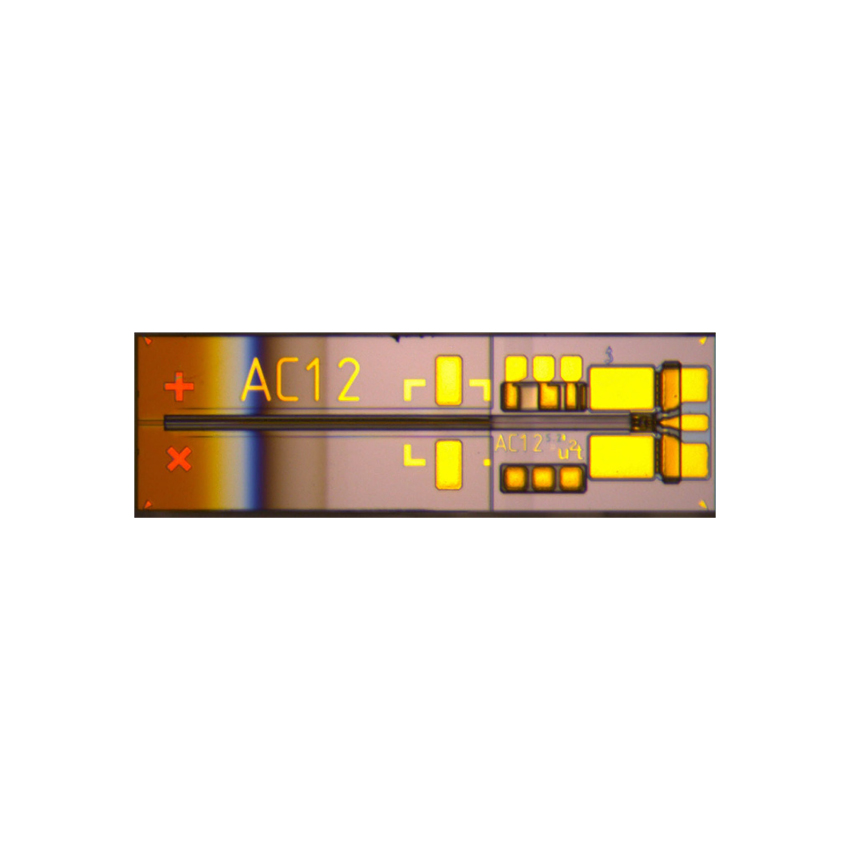

Our high-speed devices optimize the combination of a waveguide and an active photodiode. They deliver excellent linearity, high responsivity, and superior flatness of RF response, and therefore ensure superb performance, even at high optical powers.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
High-Speed Photodiodes – Some Key Details
Benefit from the high responsivity of >0.5 A/W for uses such as optical communication components, advanced component R&D, and in microwave photonics.
Model Number |
Bandwidth (GHz) |
50 Ω Resistor Termination |
Wavelength Band (nm) |
Polarization-Dependent Loss PDL (dB) |
CXPDV2120R |
50 |
✔ |
1550 |
0.5 |
CXPDV2320R |
50 |
✔ |
1310 and 1550 |
0.5 |
CXPDV2150R |
50 |
✔ |
1550 |
0.25 |
CXPDV2350R |
50 |
✔ |
1319 and 1550 |
0.25 |
CXPDV2120 |
35 |
̵ |
1550 |
0.5 |
CXPDV2050 |
35 |
̵ |
1550 |
0.25 |
