Lasers

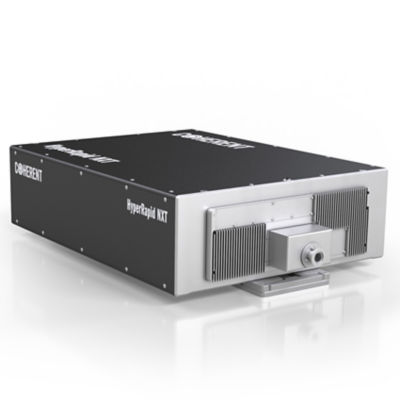

HyperRapid NXT
Maximize throughput and minimize cost-per-part with this high-power picosecond laser. Its wide operational range makes it suitable for use on nearly any material.
Tasks as diverse as cutting and drilling of metals, semiconductors, plastics, organics, glass, sapphire, ceramics, and composites all benefit from the output characteristics, pulse control capabilities, reliability, and stability of this laser.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
HyperRapid NXT Nominal Specifications
Match laser characteristics precisely to application requirements with 100 W at 1064 nm, 50 W at 532 nm, and now also 50 W at 355 nm.
Product Specifications
Model |
Wavelength (nm) |
Average Power (W) |
Repetition Rate (MHz) |
Pulsewidth (ps) |
Pulse Energy (μJ) |
HyperRapid NXT 1064-100 |
1064 |
100 |
Single shot to 4 MHz |
<15 |
250 |
HyperRapid NXT 1064-50 |
50 |
220 |
|||
HyperRapid NXT 532-100 |
532 |
100 |
<12 |
100 |
|
HyperRapid NXT 532-50 |
50 |
125 |
|||
HyperRapid NXT 532-25 |
25 |
125 |
|||
HyperRapid NXT 355-30 |
355 |
30 |
<10 |
75 |
|
HyperRapid NXT 355-30 HRR |
30 |
37 |
|||
HyperRapid NXT 355-15 |
15 |
75 |
|||
HyperRapid NXT 355-50 |
355 |
50 |
Single shot to 5 MHz |
<10 |
75 |
HyperRapid NXT 266 |
266 |
10 |
800 to 4 MHz |
<10 |
12.5 |
