Lasers

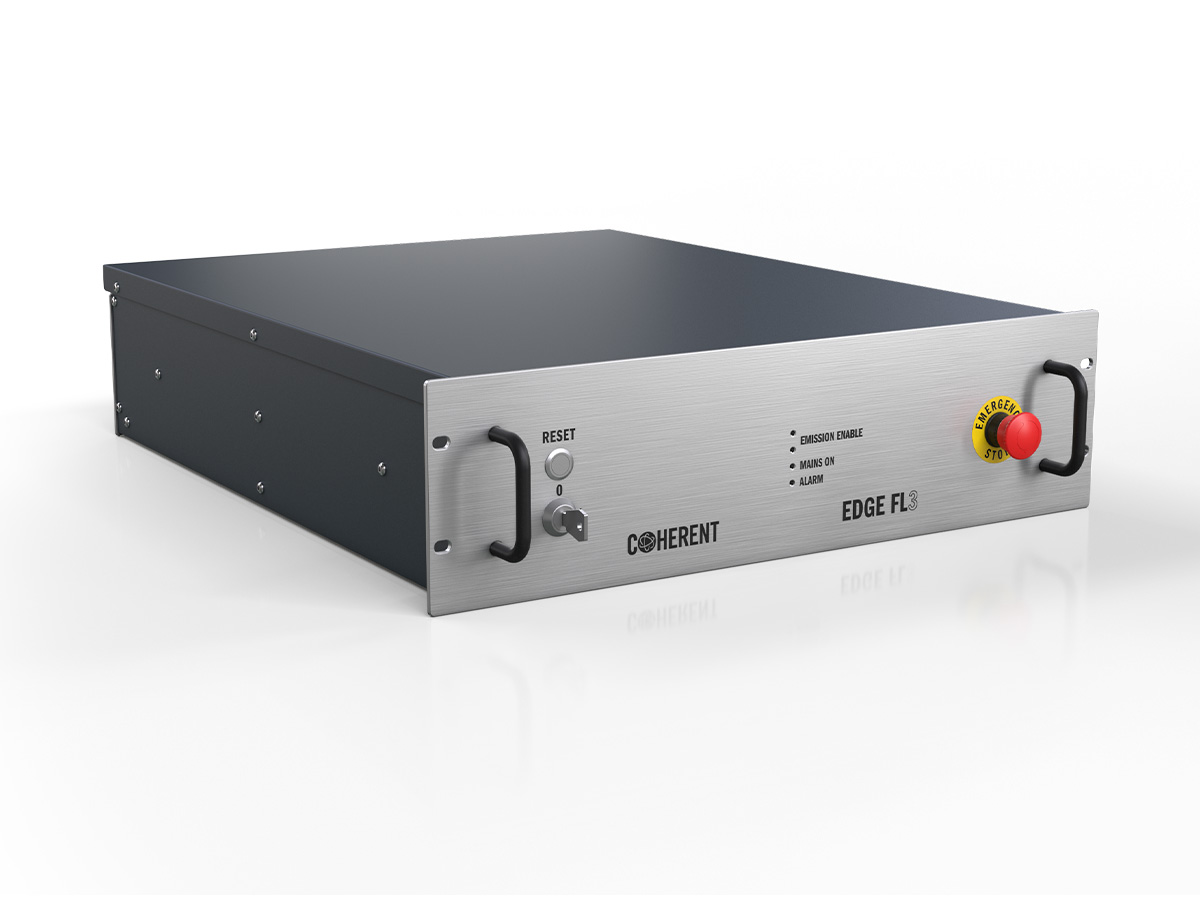

Edge Fiber Laser
Tackle the most demanding cutting jobs with these multi-kilowatt fiber lasers that offer an unrivaled combination of performance and value.
EDGE fiber lasers combine innovative design with the high-volume manufacturing methods Coherent perfected to eliminate the traditional compromise between quality and affordability. When paired with our CUT process heads, they deliver a compelling OEM cutting package further enhancing performance and value.
EDGE FIBER LASER OVERVIEW
Choose from a range of output powers and pair it with our comprehensive range of beam delivery components and processing heads.
Product Specifications
Model |
Output Power (kW) |
BPP (mm x mrad) |
Standard Supplied Fiber |
Dimensions (mm) |
EDGE FL1.5 |
1.5 |
1.5 @ 50µm |
25m, 50µm core diameter |
692 x 482.6 x 88 |
| EDGE CUT1.5 | 1.5 | Standard: 1.5 |
10m, 35 µm core diameter | 692 x 482 x88 |
EDGE FL3 |
3 |
1.5 @ 50µm |
25m, 50µm core diameter |
595 x 482.6 x 115 |
EDGE FL6 |
6 |
<4 @ 100µm |
25m, 100µm core diameter |
808 x 518 x 845 |
EDGE FL9 |
9 |
<4 @ 100µm |
25m, 100µm core diameter |
808 x 518 x 845 |
EDGE FL12 |
12 |
<4 @ 100µm |
25m, 100µm core diameter |
808 x 518 x 845 |
EDGE FL15 |
15 |
<4 @ 100µm |
25m, 100µm core diameter |
808 x 518 x 1290 |
EDGE FL20 |
20 |
<4 @ 100µm |
25m, 100µm core diameter |
808 x 518 x 1290 |
EDGE FL30 |
30 |
<4 @ 100µm |
25m, 100µm core diameter |
879 x 1013 x 1312 |
