Lasers

SureLock


Single-frequency or narrowed linewidth lasers with stabilized temperature operation and high efficiency, that are ideal for Raman spectroscopy and metrology.

SureLock diode laser modules deliver superior optical stability. They enable affordable, portable, instrument-quality performance for diverse applications. They are available in a wide range of wavelengths, power levels, and form factors.


SureLock™ Family Summary

Get single-frequency or spectrum-narrowed output from free-space and fiber-coupled modules that incorporate PowerLocker® VHG filters. Both OEM and end user models available.



Product Specifications

Model Name

Wavelength Options (nm)

Power Options (mW)

Linewidth (MHz)

Spatial Mode Options

RMS Noise (%) for 0 - 20 MHz

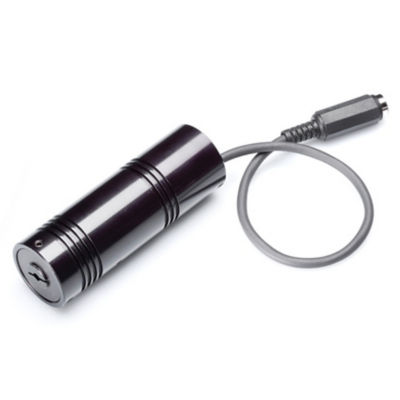

SureLock LM Compact Laser Modules

405 - 830

12 - 150

<25 - 300

Single Mode

0.25 - 0.5

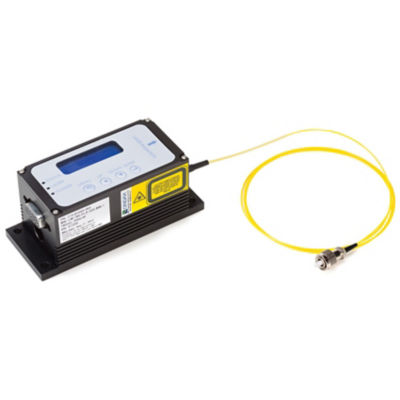

LMFC Fiber-Coupled Laser Modules

405 - 1064

3 - 500

<25 - 300

0.07 - 0.15nm

Single Mode or Multi Mode

0.25 - 0.5

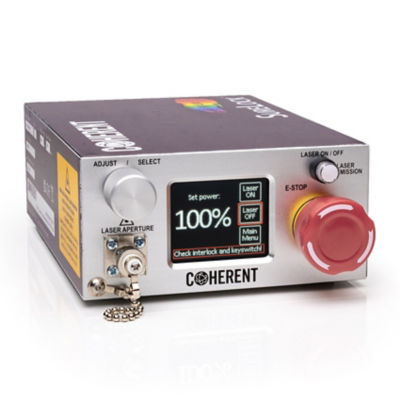

Mini-Benchtop Stabilized Lasers

785, 830, 976, 1064

350, 500

0.07 - 0.15 nm

Multi Mode

N/A

SureLock RO Series Laser Modules

633 - 808

30 - 110

50 - 300

Single Mode

0.25 - 0.5

SureLock Butterfly OEM Raman Lasers

785 - 1065

600

0.07 - 0.15 nm

Single Mode

N/A

SureLock TO Can Lasers

638 - 808

32 - 120

50 - 300

Single Mode

N/A

SureLock Collimated TO Can Lasers

404 - 1064

12 - 500

<25 - 200

Single Mode or Multi Mode

N/A
