Lasers

Genesis


CW lasers with industrial reliability, long lifetimes, and unmatched performance choices for lab or OEM use: wavelengths from 355 to 1154 nm and power from  40 mW to 10 W.

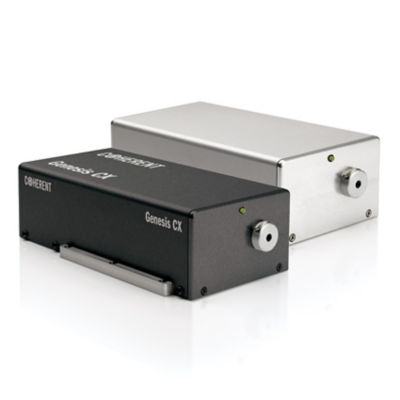

Genesis CX provides TEM00 output up to 10 W visible or 250 mW UV, for semiconductor inspection, holography, flow cytometry, and microscopy.

Genesis MX MTM provides low M2 output up to 10 W at wavelengths from 460 to 1154 nm, for medical applications, bio-instrumentation, and imaging.

Genesis MX STM and SLM provide TEM00 output up to 2 W of visible output, for semiconductor inspection, holography, and bio-instrumentation.


Genesis Lasers Overview

Our optically pumped semiconductor laser (OPSL) technology gives you unmatched output choices.



Product Specifications

Genesis Series Name

Standard Wavelength Options (nm)

Key Features

Beam Characteristics

Typical Applications

Transverse Mode

Longitudinal Mode

Genesis MX SLM

460, 480, 488, 514, 532, 561, 577, 590

Single longitudinal mode

Power up to 1 W

TEM00

Single mode

(Linewidth < 5 MHz)

Holography

Interferometry

Spectroscopy

Genesis MX STM

460, 480, 488, 514, 532, 561, 577, 590, 639

  Stable, low-noise output

Power up to 2 W

TEM00

Multi-mode

Semiconductor inspection

Microscopy

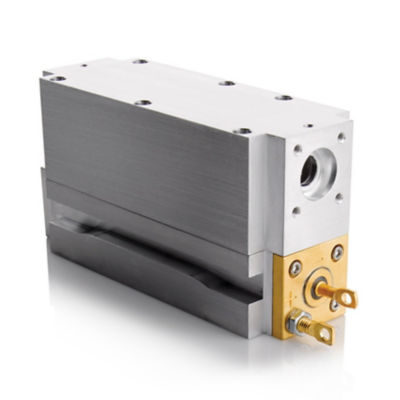

Genesis MX MTM

460, 480, 488, 514, 532, 561, 577, 589, 590, 639, 920, 1064, 1154

High beam quality, multi-mode output

Ideal for coupling into small-diameter multi-mode fibers

Power up to 10 W

Multi-mode

(M2 < 7)

Multi-mode

Wide field microscopy

DNA sequencing

Genomics

 Retinal photocoagulation

Dermatology

Genesis CX SLM

355, 460, 480, 488, 514, 532, 577, 590

Single longitudinal mode

Power up to 5 W

TEM00

Single mode

(Linewidth < 5 MHz)

Holography

Interferometry

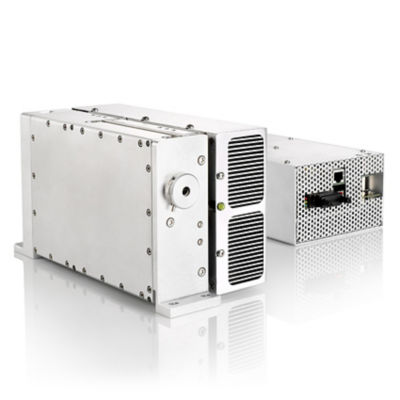

Genesis CX STM

355, 460, 480, 488, 514, 532, 561, 577, 590

Stable, low-noise output

Power up to 10 W

TEM00

Multi-mode

 Semiconductor inspection

Mask writing

Flow cytometry

Spectroscopy
