Fiber-Coupled Diode Lasers
Choose from a range of single wavelengths from the blue to the IR, pigtailed with 1 meter of standard (SM, MM, PM) or custom fibers, or even dual-color fiber combiners.
Our economical lasers feature low-power consumption, ultra-compact packaging, and excellent reliability. Available wavelengths include 405 nm, 440 nm, 515 nm, 520 nm, 532 nm, 635 nm, 660 nm, 785 nm, 808 nm, and 1064 nm, with other wavelengths upon request.

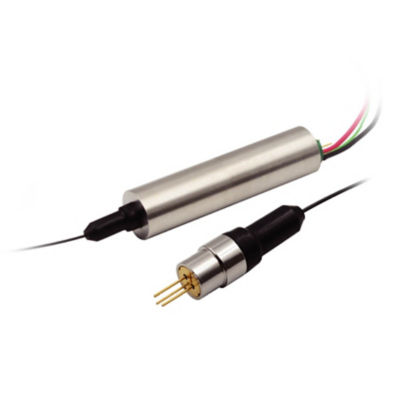

Fiber-Coupled Diode Lasers – Some Examples
Integrate these modules easily in any application. Choice of single-mode (SM), multi-mode (MM), and polarization-maintaining (PM) fibers. PM delivers 15 dB extinction.
Product Specifications
Module Number |
Nominal Wavelength (nm) |
Output Power (mW) |
Fiber Type |
Fiber Details (MFD/Cladding/NA) |
Module Dimensions (mm) |
FBPM-488-025-01-10-00-A |
488±2 |
25 |
PM |
3.3 µm/125 µm/0.12 |
Φ8×28.4 |
FGSM-520-010-10-10-00-A |
520 (510-525) |
10 |
SM |
3.5 µm/125 µm/0.13 |
Φ8×28.4 |
FGSM-520-020-10-10-00-A |
520 (510-525) |
20 |
SM |
3.5 µm/125 µm/0.13 |
Φ8×28.4 |
FRPM-638-001-10-10-00-A |
638±8 |
1 |
PM |
4.5 µm/12 5µm/0.12 |
Φ8×28.4 |
FRPM-638-030-10-10-00-A |
638±8 |
30 |
PM |
4.5 µm/125 µm/0.12 |
Φ8×28.4 |
FRPM-638-070-10-10-00-A |
638±8 |
70 |
PM |
4.5 µm/125 µm/0.12 |
Φ8×28.4 |
FRPM-660-030-10-10-00-A |
660±9 |
30 |
PM |
4.5 µm/125 µm/0.12 |
Φ8×28.4 |
FRSM-638-001-10-10-00-A |
638±8 |
1 |
SM |
4.0 µm/125 µm/0.13 |
Φ8×28.4 |
FRSM-638-030-10-10-00-A |
638±8 |
30 |
SM |
4.0 µm/125 µm/0.13 |
Φ8×28.4 |
FRSM-638-050-10-10-00-A |
638±8 |
50 |
SM |
4.0 µm/125 µm/0.13 |
Φ8×28.4 |
FRSM-638-030-10-10-00-A |
660±9 |
30 |
SM |
4.0 µm/12 5µm/0.13 |
Φ8×28.4 |
FRMM-638-350-00-90-00-A |
638±8 |
350 |
MM |
105 µm/125 µm/0.15 |
Φ8×28.4 |
FRMM-638-400-10-10-00-A |
638±8 |
400 |
MM |
105 µm/125 µm/0.22 |
Φ8×28.4 |
