Thermoelectric Generator (TEG) Modules
Use one or more of our modules to generate DC electrical power from a temperature differential (e.g., hot surface) in a wide range of consumer and industrial applications.
Designed to generate up to 15 watts of off-grid power, particularly in cold outdoor environments, our robust devices are all solid-state — they have no moving parts to service or wear out and are ideal for a range of industrial, commercial, and oil/gas industry uses.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
Thermoelectric Generator (TEG) Modules – Product Overview
Use these novel solutions in consumer applications such as mosquito catchers, self-powered stove top fans, self-powered stoves, battery chargers.
Product Name |
Optimum Power (W) |
Open Circuit Voltage (V) |
Power (W) |
Maximum Temp (C) |
TC (°C) |
Base Ceramic Length (mm) |
Base Ceramic Width (mm) |
Top Ceramic Width (mm) |
Height (mm) |

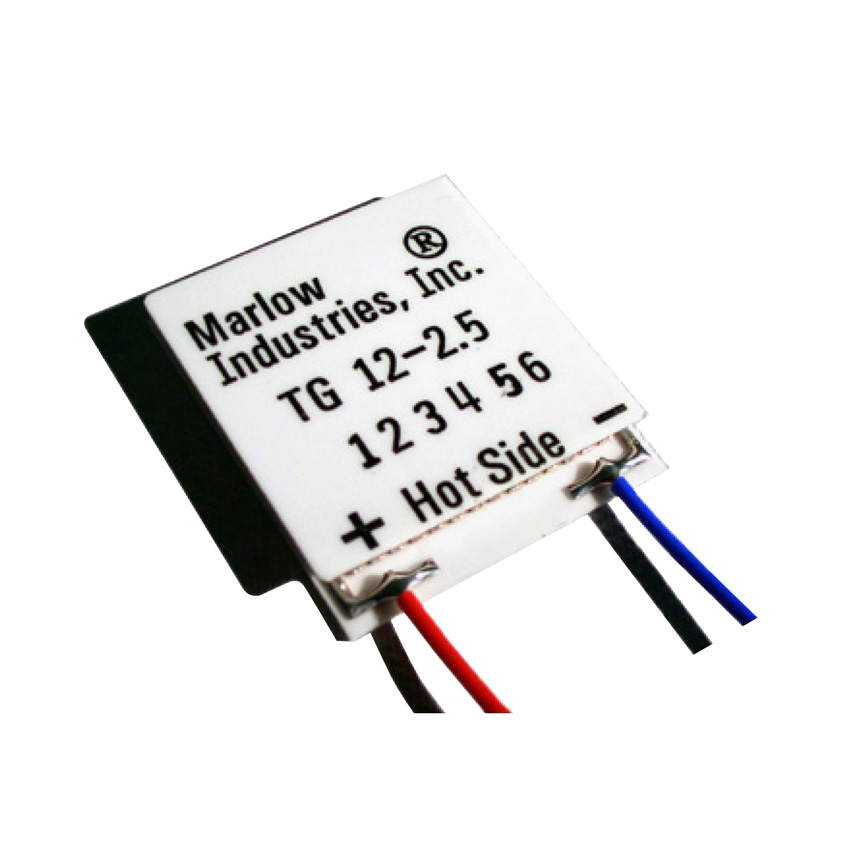

TG12-2.5-01LS |
2.71 |
9.56 |
2.71 |
230 |
50 |
34.01 |
30 |
30 |
3.94 |

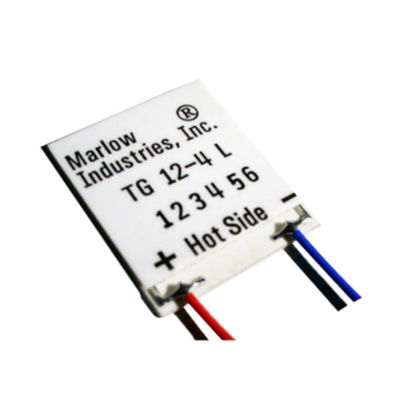

TG12-4-01LS |
4.05 |
9.45 |
4.05 |
230 |
50 |
34.01 |
30 |
30 |
3.33 |

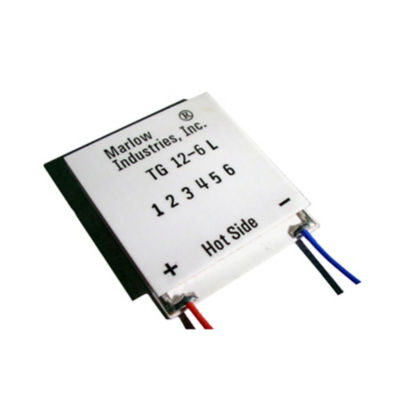

TG12-6-01L |
6.16 |
9.51 |
6.16 |
230 |
50 |
44.7 |
40.1 |
40.1 |
3.91 |

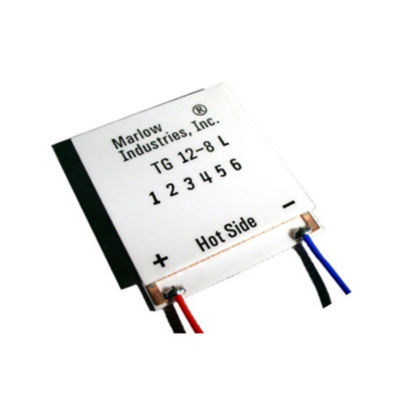

TG12-8-01LS |
7.95 |
9.43 |
7.95 |
230 |
50 |
44.7 |
40.1 |
40.1 |
3.53 |
