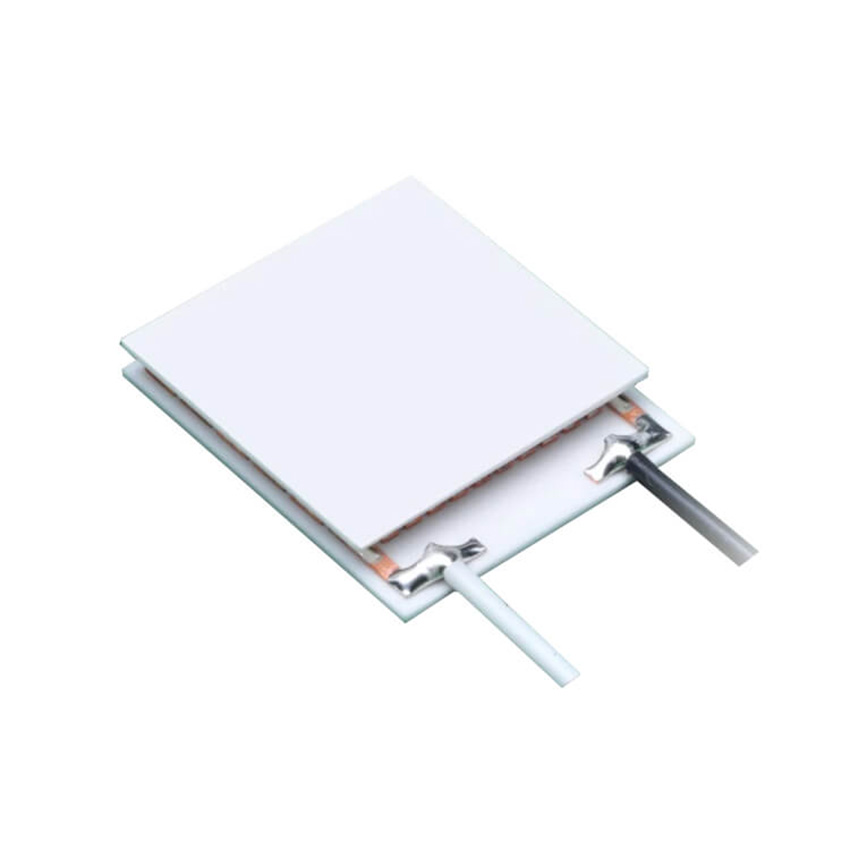

Single-Stage TEC Devices
Choose from a huge range of single-stage thermoelectrics designed for medium to low heat pumping capacity requirements, based on cooling capacity, size, and shape.
Ideal for active spot cooling and precise temperature control. Most of the models are RoHS EU compliant with a wide variety of performance and integration options include porched/unporched architectures, flying leads, and Au flash exterior, suitable for soldering.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
Single Stage TEC Devices – Product Selection Table
Use these ultra-compact solid-state devices for cooling & precision temperature control in any orientation, as well as in zero gravity and/or high G conditions.
Product Name |
Imax 27°C (amps) |
Vmax 27°C (volts) |
ΔTmax N2 (27°C) |
Qmax 27°C (watts) |
CM23-1.9-01AC |
1.9 |
2.8 |
71 |
3.4 |
CM23-1.9-05AC |
1.9 |
2.8 |
71 |
3.4 |
CM23-1.9-07AC |
1.9 |
2.8 |
71 |
3.4 |
CM23-1.9-08AC |
1.9 |
2.8 |
71 |
3.4 |
CM29-1.9-01AC |
1.9 |
3.5 |
4.3 |
|
CM29-1.9-04AC |
1.9 |
3.5 |
4.3 |
|
CM30-1.9-01AC |
1.9 |
3.6 |
71 |
4.5 |
CM35-1.9-01AC |
1.9 |
4.2 |
71 |
5.2 |
CM35-1.9-07AC |
1.9 |
4.2 |
71 |
5.2 |
MT09-0.8A-01AN |
0.8 |
1.1 |
71° |
0.8 |
MT12-0.9A-01AN |
0.9 |
1.4 |
70° |
0.9 |
MT15-0.9A-21AN |
0.9 |
1.8 |
72° |
1.1 |
MT20-0.9A-21-AN |
0.9 |
2.4 |
71° |
1.5 |
MT22-0.7A-21AN |
0.7 |
2.6 |
72° |
1.2 |
MT30-0.9A-21AN |
0.9 |
3.6 |
70° |
2.2 |
NL1010T-01AC |
1 |
0.8 |
61 |
0.5 |
NL1011T-01AC |
1 |
2 |
61 |
1 |
NL1012T-01AC |
1 |
3.7 |
61 |
2.1 |
NL1013T-01AC |
1 |
8.5 |
61 |
4.8 |
NL1015T-01AC |
1 |
4.6 |
61 |
2.6 |
NL1020T-01AC |
1.8 |
0.8 |
64 |
0.9 |
NL1021T-01AC |
1.8 |
1.9 |
64 |
2.2 |
NL1022T-01AC |
1.8 |
3.5 |
64 |
4 |
NL1023T-01AC |
1.8 |
8 |
64 |
9.2 |
NL1025T-01AC |
1.8 |
4.4 |
64 |
5.2 |
NL1507-03AC |
1.8 |
4.7 |
64 |
5.4 |
PL020-4-30-01LS |
3.9 |
8.2 |
65 |
20.7 |
PL030-6-30-01LS |
5.6 |
8.2 |
66 |
30 |
PL036-4-30-01LS |
3.7 |
14.7 |
66 |
36 |
PL054-6-40-01LS |
6 |
14.7 |
66 |
54 |
PL080-8.5-40-01LS |
8.5 |
14.7 |
66 |
78 |
PL105-7.5-40-01LS |
7.6 |
21.2 |
60 |
105 |
RC12-2.5-01LS |
2.5 |
14.7 |
66 |
23 |
RC12-4-01LS |
3.7 |
14.7 |
66 |
36 |
RC12-6-01LS |
5.6 |
14.7 |
66 |
54 |
RC12-8-01LS |
7.4 |
14.7 |
66 |
71 |
RC12-9-01LS |
8.4 |
14.1 |
65 |
78.6 |
RC24-3-01LS |
2.9 |
26.8 |
60 |
49.6 |
RC3-2.5-01LS |
2.5 |
3.6 |
65 |
6 |
RC3-4-01LS |
3.7 |
3.6 |
65 |
9 |
RC3-6-01LS |
5.6 |
3.6 |
65 |
13 |
RC3-8-01LS |
7.4 |
3.6 |
65 |
17 |
RC6-2.5-01LS |
2.5 |
8.2 |
65 |
13 |
RC6-4-01LS |
3.7 |
8.2 |
65 |
20 |
RC6-6-01LS |
5.6 |
8.2 |
66 |
30 |
RC6-8-01LS |
7.4 |
8.2 |
65 |
39 |
TR060-6.5-40-01LS |
6.5 |
15.8 |
76 |
61 |
TR060-6.5-40-03LS |
6.5 |
15.8 |
76 |
61 |
