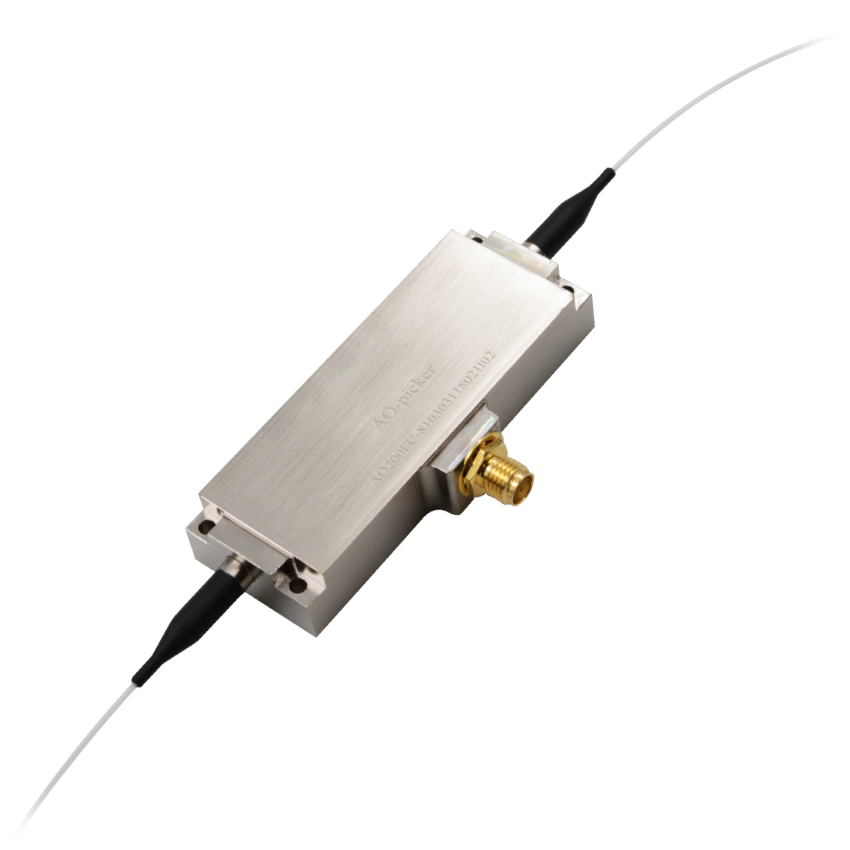

Acousto-Optic Pulse Picker
Pick only single pulses every time thanks to the fast rise time (<10 ns) of these pulse pickers that also feature high extinction ratios for unwanted pulses.
Pick a single pulse from an ultrafast pulse train for either downstream amplification or reshaping. Our superior crystal processing technology and mature vacuum thermos-compression bonding technology ensure high performance and long-term reliability.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
Acousto-Optic Pulse Picker
Get very high unwanted pulse extinction thanks to a proprietary extinction structure. And their low VSWR translates into efficient use of the applied RF power.
Operating Wavelength (nm) |
RF Frequency (MHz) |
Insertion Loss (dB) |
Extinction Ratio (dB) |
Rise/Fall Time (ns) |
Fiber Type |
VSWR |
1064±30 |
200 |
<3 |
>45 |
<10 |
Corning PM98-U25DD-H |
<1.2:1 |
