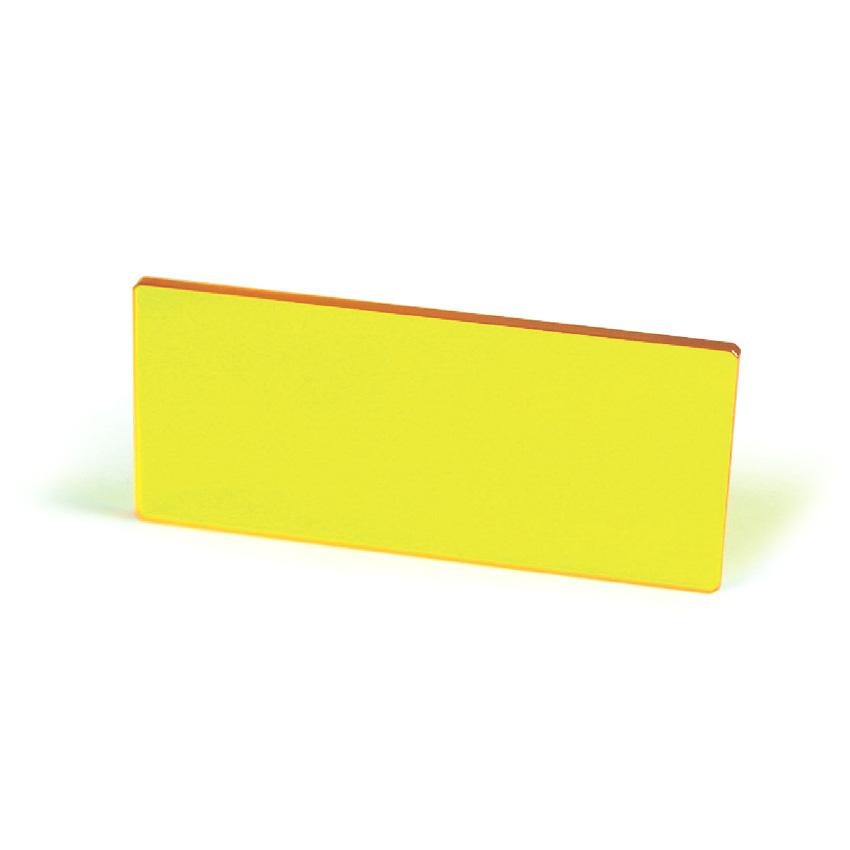

Brewster Windows
Obtain polarized laser output or achieve lossless transmission of p-polarized light using these plane parallel windows, designed for operation at Brewster's angle.
These uncoated ZnSe windows will transmit 100% at 10.6 µm when used at 67.4º angle of incidence. S-polarized light will be reflected 50% per surface at this angle of incidence.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
Brewster Windows Selection
Choose from our standard range of ZnSe windows or specify exactly the component you require. Ge Brewster windows are available for use at 76.0º angle of incidence.
Model |
Width (mm) |
Length (mm) |
Thickness (mm) |
Parallelism (arc minutes) |
Surface Figure (power/irregularity) at 0.63µm |
Surface Quality |
746216 |
10.16 |
26.4 |
2.03 |
3 |
1.0 fringe/0.5 fringe |
20-10 |
282837 |
12.7 |
33 |
2.03 |
|||
154022 |
15.24 |
39.6 |
2.03 |
|||
749878 |
17.78 |
46.2 |
2.03 |
|||
768646 |
20.32 |
52.8 |
3.05 |
|||
761688 |
22.86 |
59.4 |
3.05 |
|||
134369 |
25.4 |
66 |
3.05 |
|||
723434 |
38.1 |
99.3 |
4.06 |
|||
260345 |
50.8 |
132.3 |
5.08 |
