Top-Illuminated Monitor Photodiode Chips
Choose a standard or large area photodiode for channel monitoring anywhere across the 1270-1620 nm wavelength range and benefit from an extremely low dark current.
These InGaAs monitor photodiode chips are available with a detection area of either 255 μm x 255 μm, or circular Ø 550 μm. Simple to integrate in transceivers and transponders, the smaller option is qualified according to GR-468 for use in non-hermetic packages.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
Top-Illuminated Monitor Photodiode Chips
Use these in high-performance communications components which benefit from their high reliability and wide (-40 to 90°C) operating temperature range.
Key Features
Top illuminated for easy integration and alignment
Operating temperature -40 °C to 90 °C
1270-1620 wavelength range
High reliability
Choice of active area – either 255 μm x 255 μm, or circular Ø 550 μm.
255 μm x 255 μm is GR-468 qualified, typical responsivity is 0.9 A/W, dark current is 2 nA

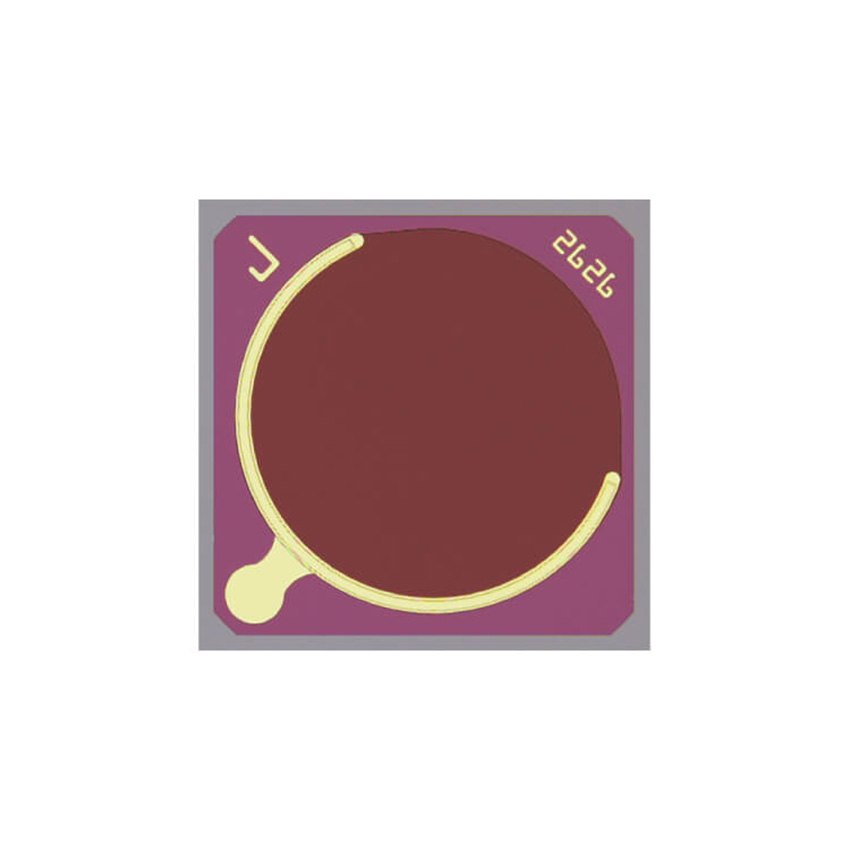

Ø 550 μm typical responsivity is 1 A/W, dark current is 1 nA
