Multi-Watt Single Emitter Laser Diodes
Get the high output power, high coupling efficiency, and high reliability you need for pumping next-generation fiber lasers and for other high-power laser diode applications.
These devices use a long gain region and deliver up to 22 Watts from a single emitter. Plus they provide high reliability; our proprietary E2 passivation process eliminates Catastrophic Optical Damage (COD) to the output facet even at these high output powers.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
Mini-Butterfly CM Series Laser Diodes
Choose from a broad range of power and wavelengths to optimize applications in fiber laser pumping, materials processing, printing, and medical therapeutics.
- 4W 9XXnm 44micron High-Power Single Emitter Laser Diode on Submount
- 4W 808nm 90micron High-Power Single Emitter Laser Diode on Submount
- 8W 808nm 190micron High-Power Single Emitter Laser Diode on Submount
- 9W 9XXnm 90micron High-Power Single Emitter Laser Diode on Submount

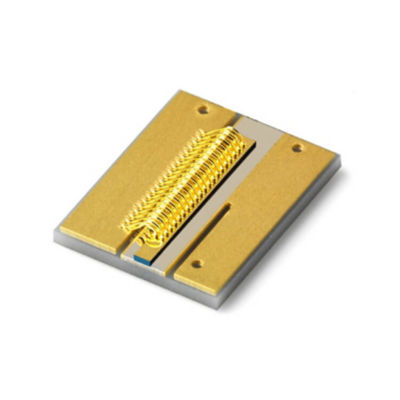

- 13W 9XXnm 94micron High-Power Single Emitter Laser Diode on Submount
- 22W 9XXnm 190micron High-Power Single Emitter Laser Diode on Submount
Model Number |
Output Power (W) |
Center Wavelength1 (nm) |
Emitter Width (µm) |
||
SES13-915-94-01 |
13 |
915 ± 10 |
94 |
||
SES13-940-94-01 |
13 |
940 ± 10 |
94 |
||
SES13-975B-94-01 |
13 |
976 ± 3 |
94 |
||
SES22-915-01 |
22 |
915 ± 10 |
190 |
||
SES22-975-01 |
22 |
975 ± 10 |
190 |
||
SES4-808A-01 |
4 |
806 ± 3 |
90 |
||
SES4-808B-01 |
4 |
803 ± 3 |
90 |
||
SES4-808C-01 |
4 |
808 ± 2.5 |
90 |
||
SES8-808A-01 |
8 |
806 ± 3 |
190 |
||
SES8-808B-01 |
8 |
803 ± 3 |
190 |
||
SES8-808C-01 |
8 |
808 ± 2.5 |
190 |
||
SES4-940-01 |
4 |
940 ± 10 |
44 |
||
SES4-940B-01 |
4 |
940 ± 3 |
44 |
||
SEC9-915-01 |
9 |
915 ± 10 |
90 |
||
SEC9-940-01 |
9 |
940 ± 10 |
90 |
||
SEC9-975-01 |
9 |
975 ± 10 |
90 |
1. Other center wavelengths as well as reduced wavelength window/extended ranges are available on request (900 - 1070 nm).
